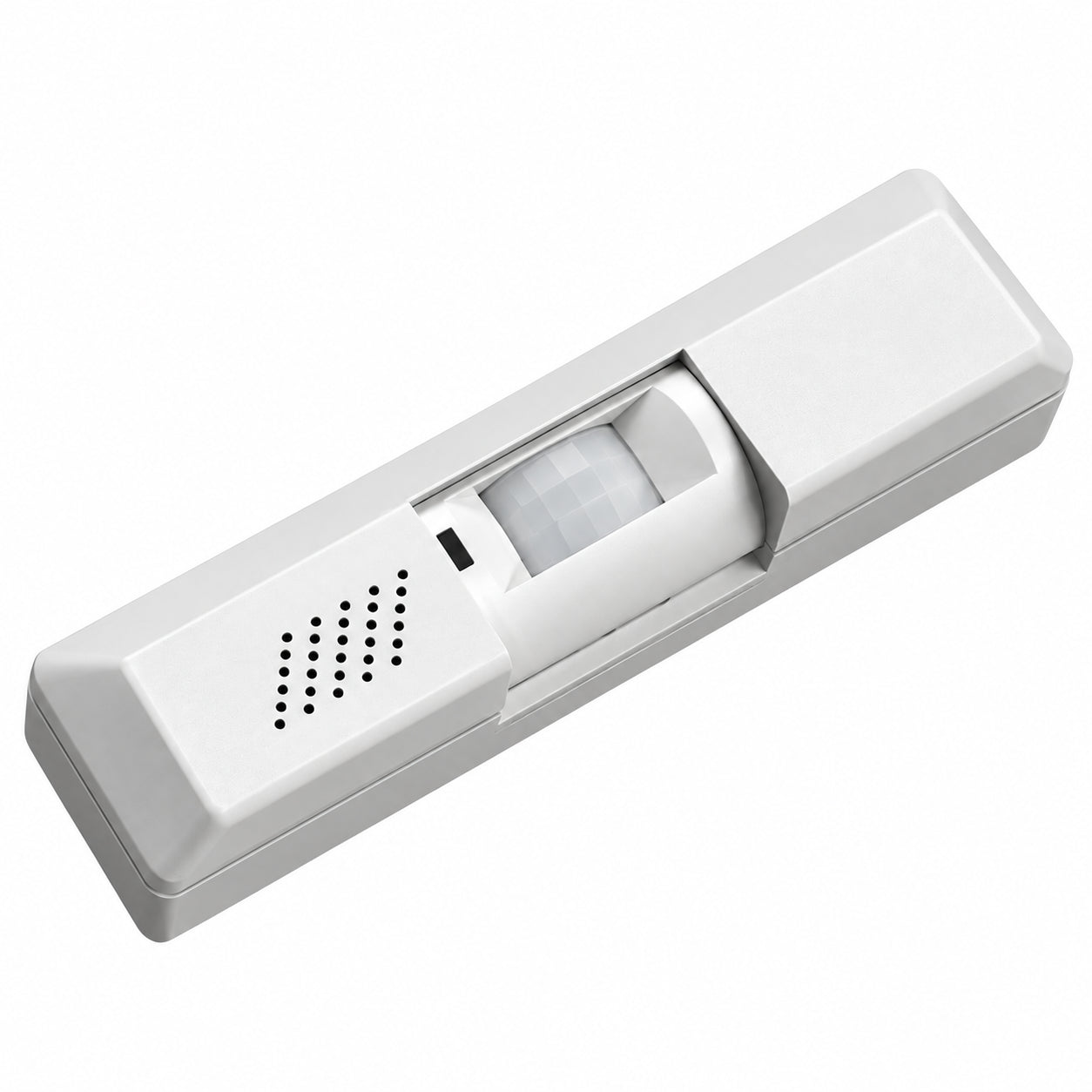

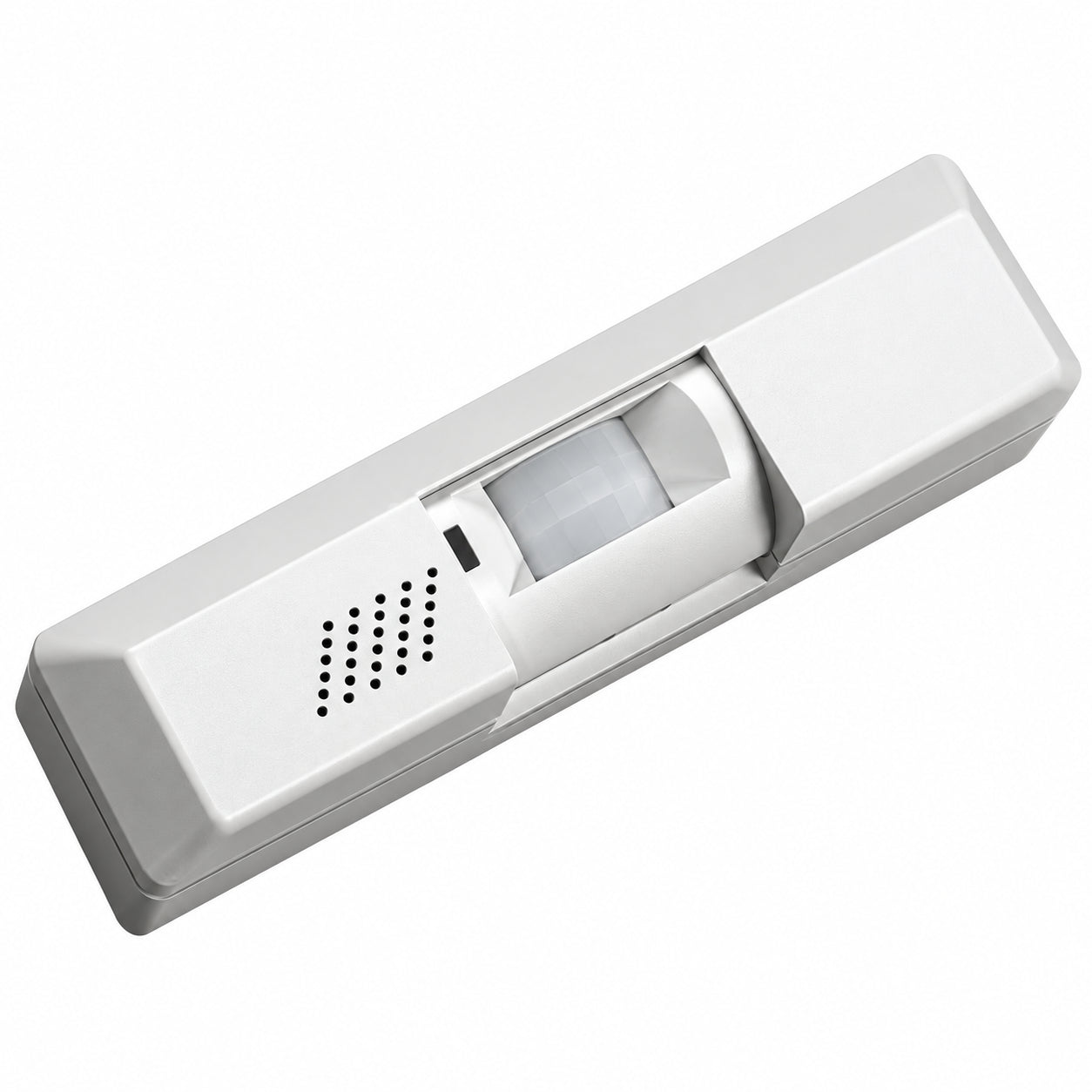

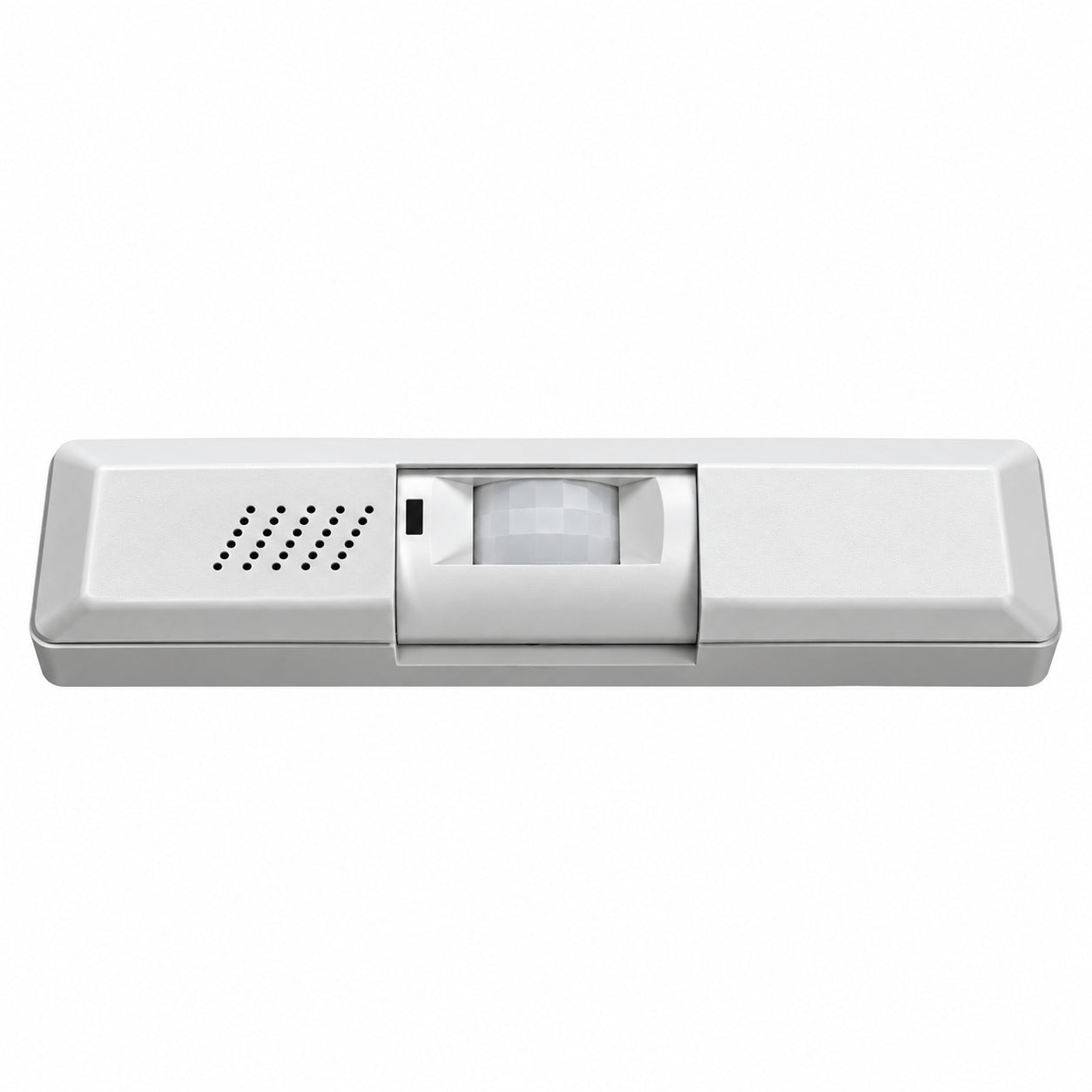

Securitron XMS Exit Motion Sensor White

The Securitron XMS Exit Motion Sensor is a white passive infrared (PIR) request-to-exit device designed for hands-free egress and access control applications. It detects a person approaching a secured door and can automatically release a compatible magnetic lock, allowing convenient exit without pressing a button. The sensor provides a Request to Exit (REX) output for integration with access control systems and features an adjustable infrared detection beam for optimized coverage. Adjustable time relock helps prevent premature reactivation when someone pauses near the exit. The XMS operates on 12 or 24 VDC, draws approximately 20 to 50 mA depending on switching status, and is intended for indoor use. It is ANSI/UL 294 listed and measures 7 inches long, 1.87 inches deep, and 1.75 inches high.
