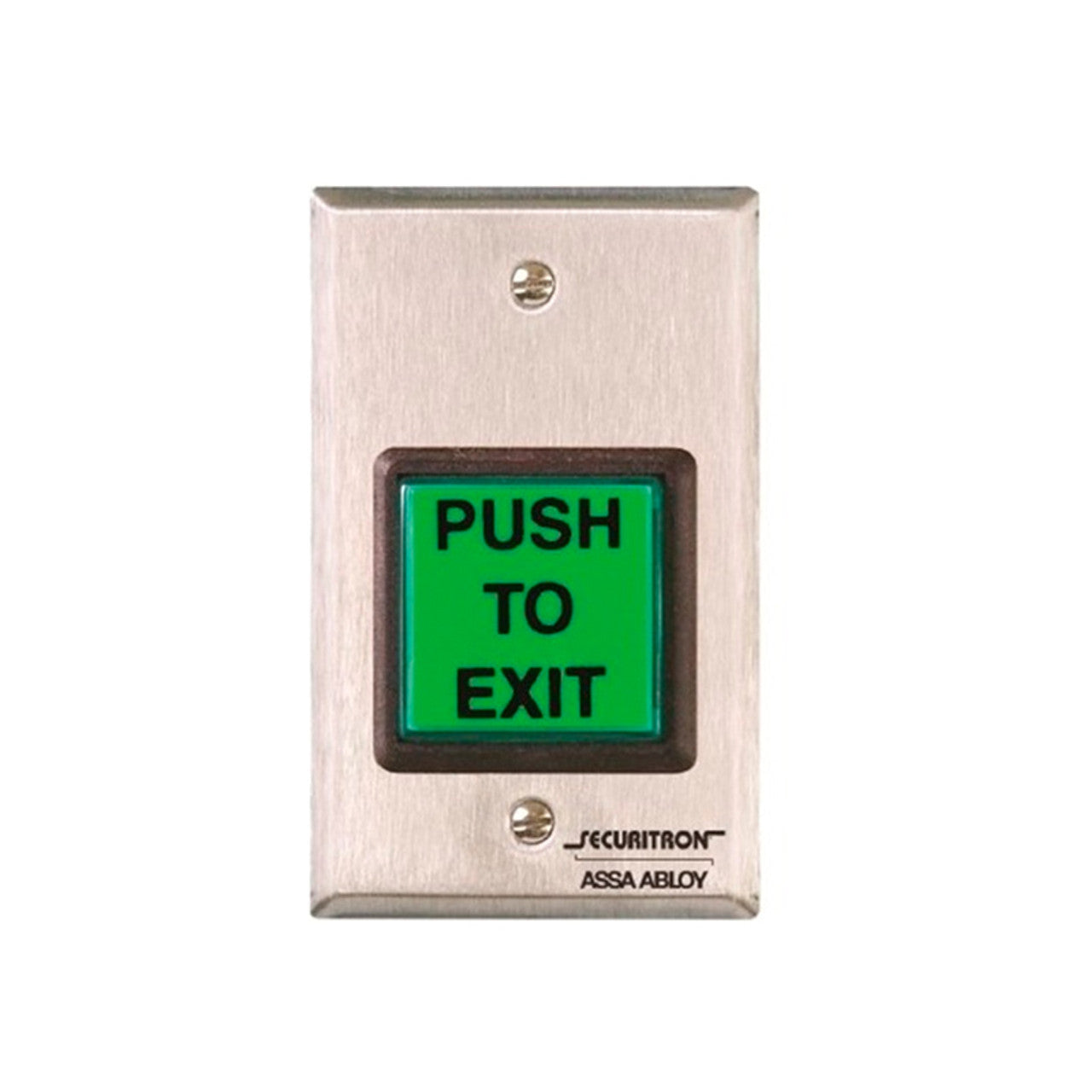

Securitron EEB2 Emergency Exit Button

Model EEB2 is a two-inch square, exit button, mounted on a stainless steel (S.S.), single gang key plate. The EEB2 has a 3A switching capacity and a timer set for 30 seconds. These units are intended only for release of a magnetic lock from the inside of a door. When the button is pressed, the lock releases for 30 seconds. If pressed again during the 30-second lock release period, the unit will “retrigger” starting a new 30-second lock release period. These buttons are specifically intended for installation on access controlled egress doors, as described in the Building Officials and Code Administrators (BOCA) code. A motion detector, such as the Securitron Model XMS, is the primary means of magnetic lock release on the door. The EEB2 exit button is employed as a backup means of releasing the lock in case of a problem with the motion detector. It should be noted that the exact release time will vary with temperature, but it will not be less than 30 seconds
