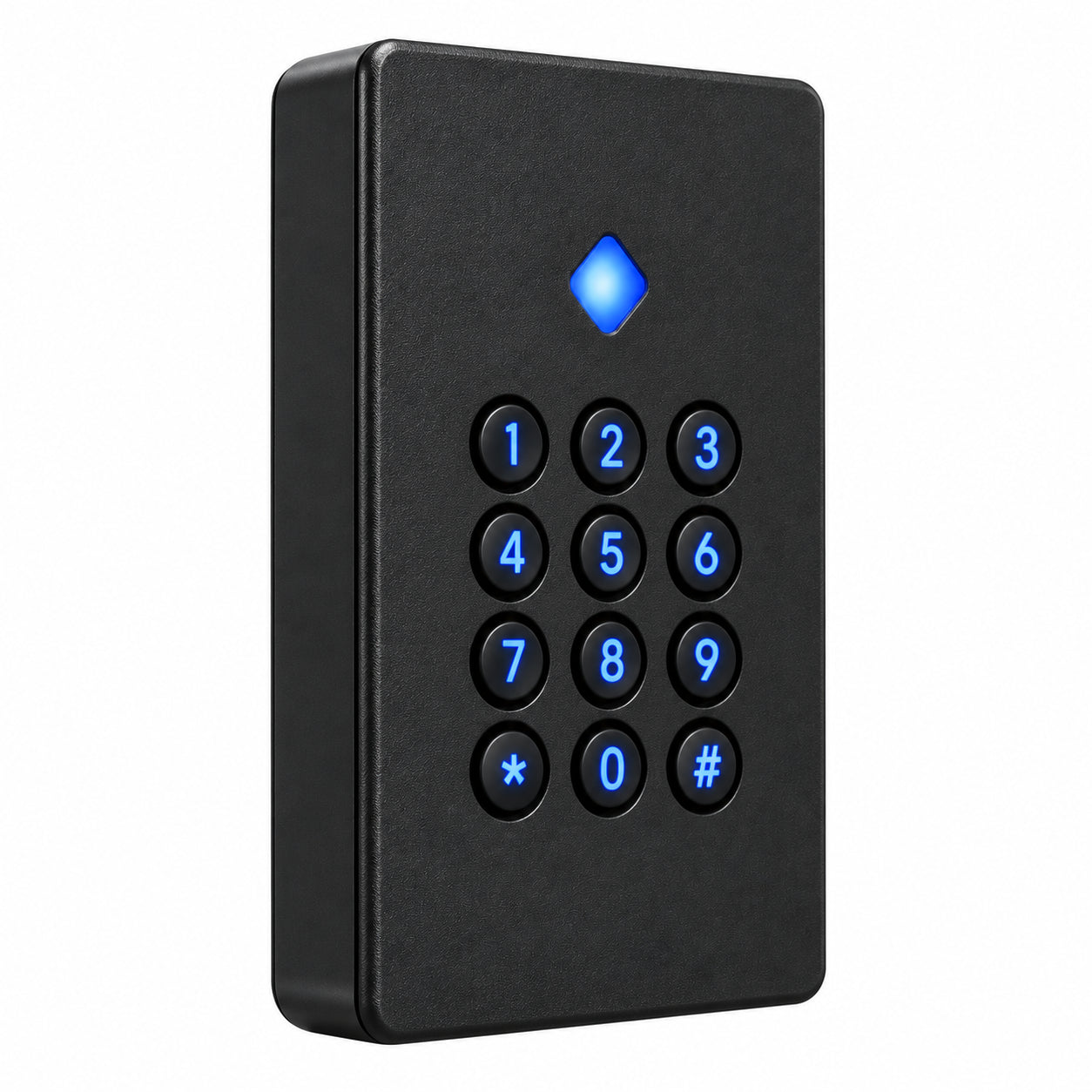

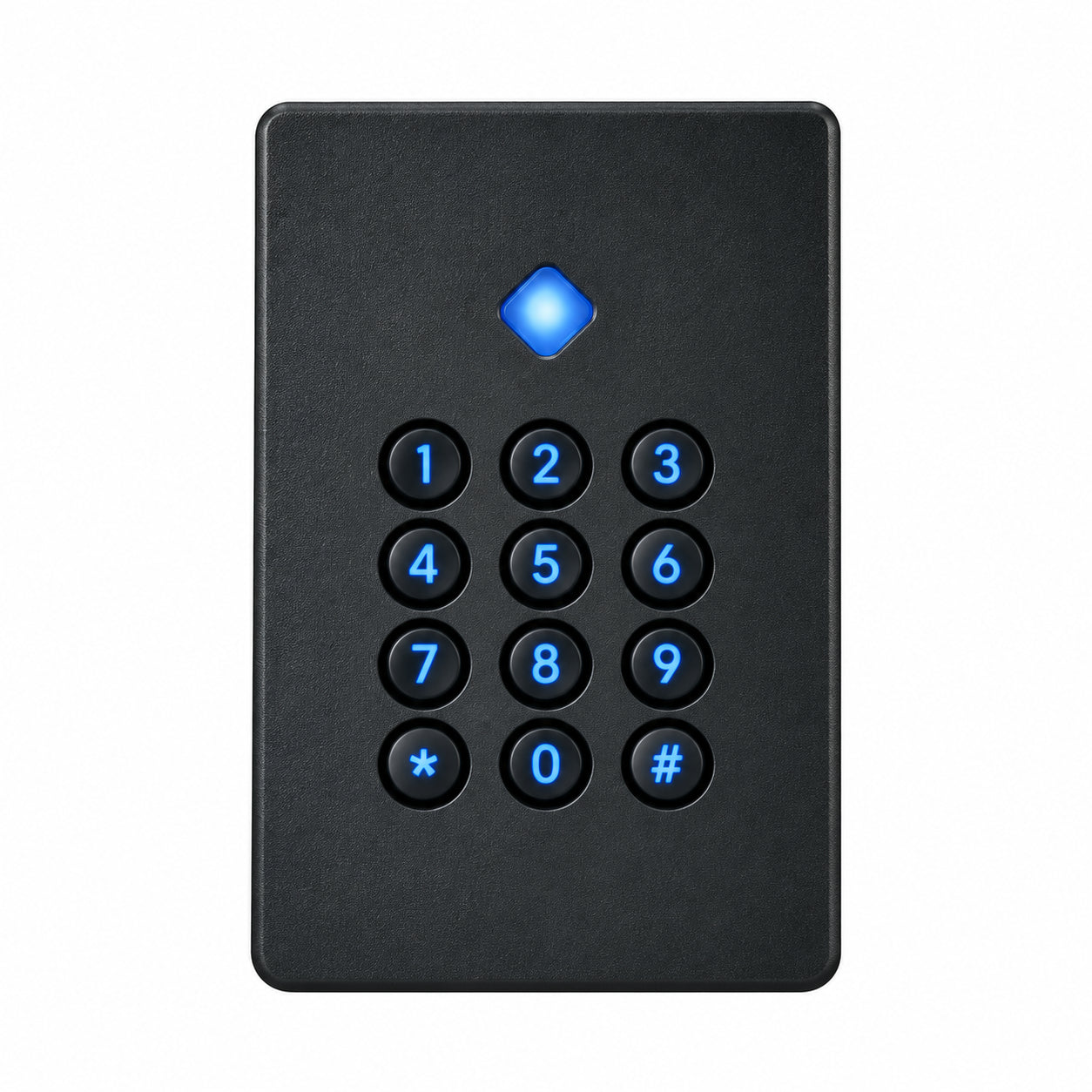

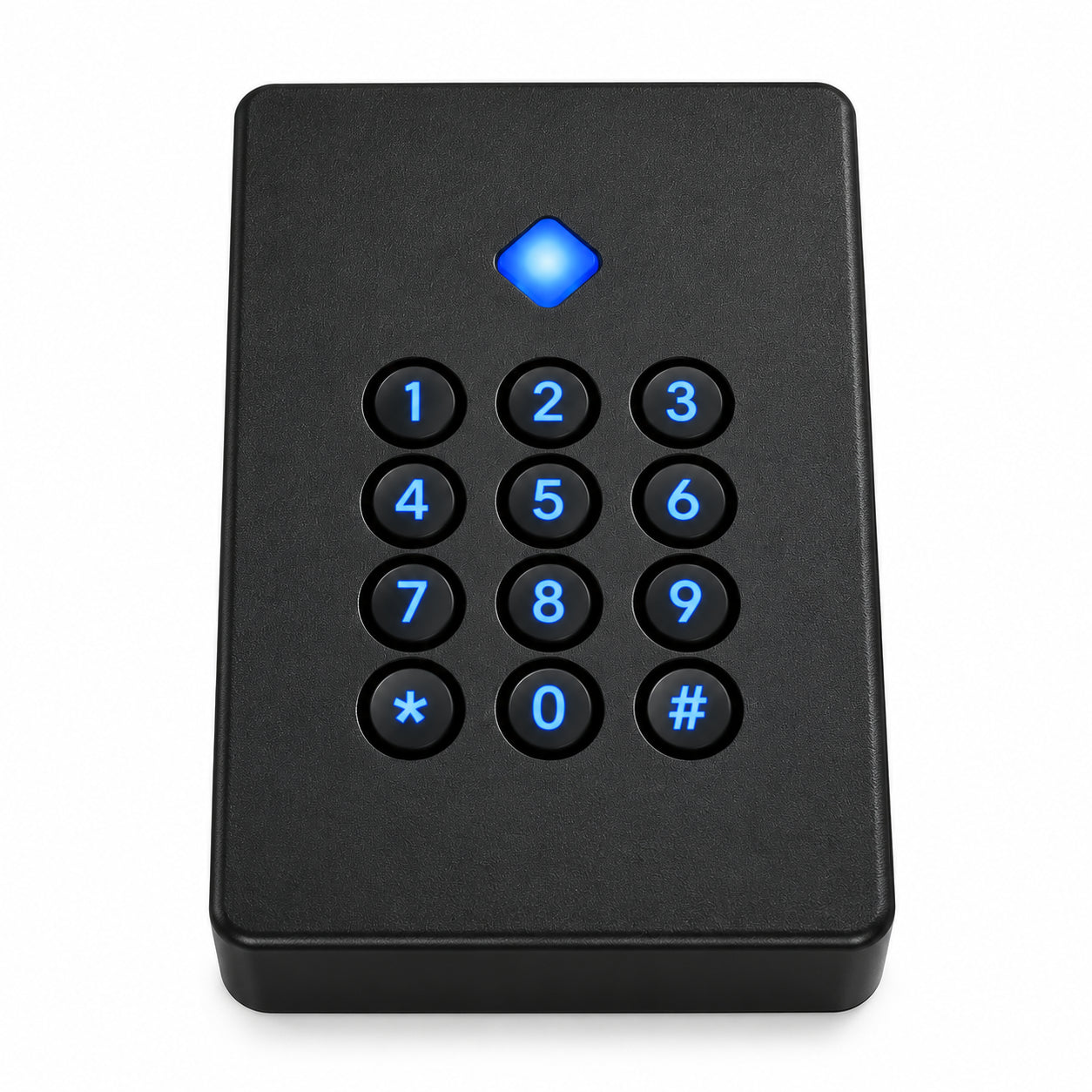

Lenel LNL-R11325-05TB Blue Diamond Multi-technology Standard-size Reader with PINpad

The LenelS2 LNL-R11325-05TB BlueDiamond Multi-technology Standard-size Reader with PINpad is an advanced access control reader designed for secure entry applications using physical and mobile credentials. The reader supports 125 kHz proximity credentials and 13.56 MHz smart card technologies, including compatible HID iCLASS, MIFARE, and DESFire credentials. Bluetooth Low Energy enables BlueDiamond mobile credentials with supported devices, providing a flexible alternative to physical cards. The illuminated PINpad adds keypad-based identification and authentication capabilities, while an RGB LED and integral speaker provide visual and audible status indication. The reader supports Supervised F/2F, Wiegand, OSDP, and OSDP Secure Channel interfaces, making it suitable for a variety of access control systems. Its molded polycarbonate/ABS housing has a fingerprint-resistant black textured finish, IP65 protection, and an optical tamper switch. The unit measures approximately 4.7 x 3.0 x 0.8 inches and supports wall or standard switchbox mounting.
