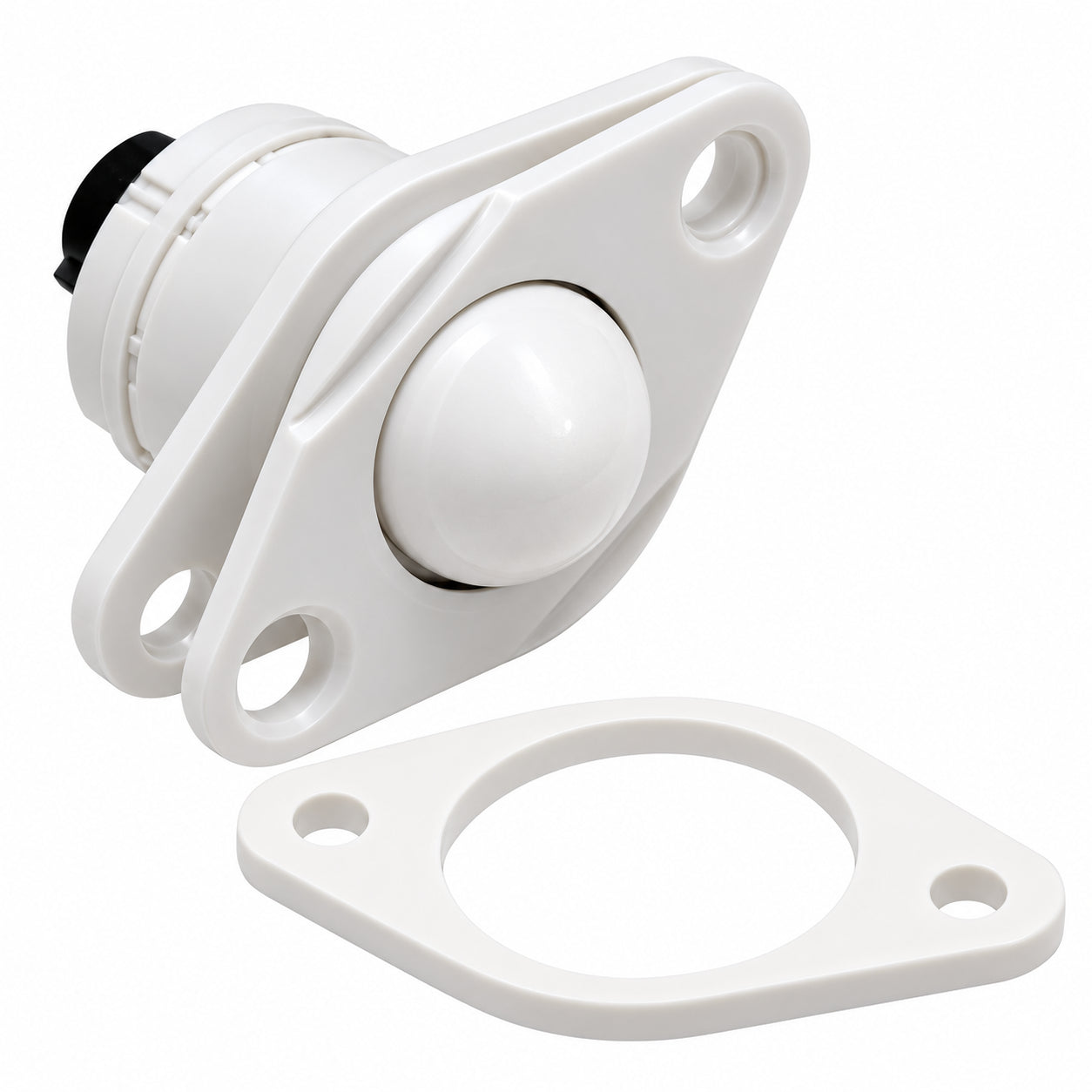

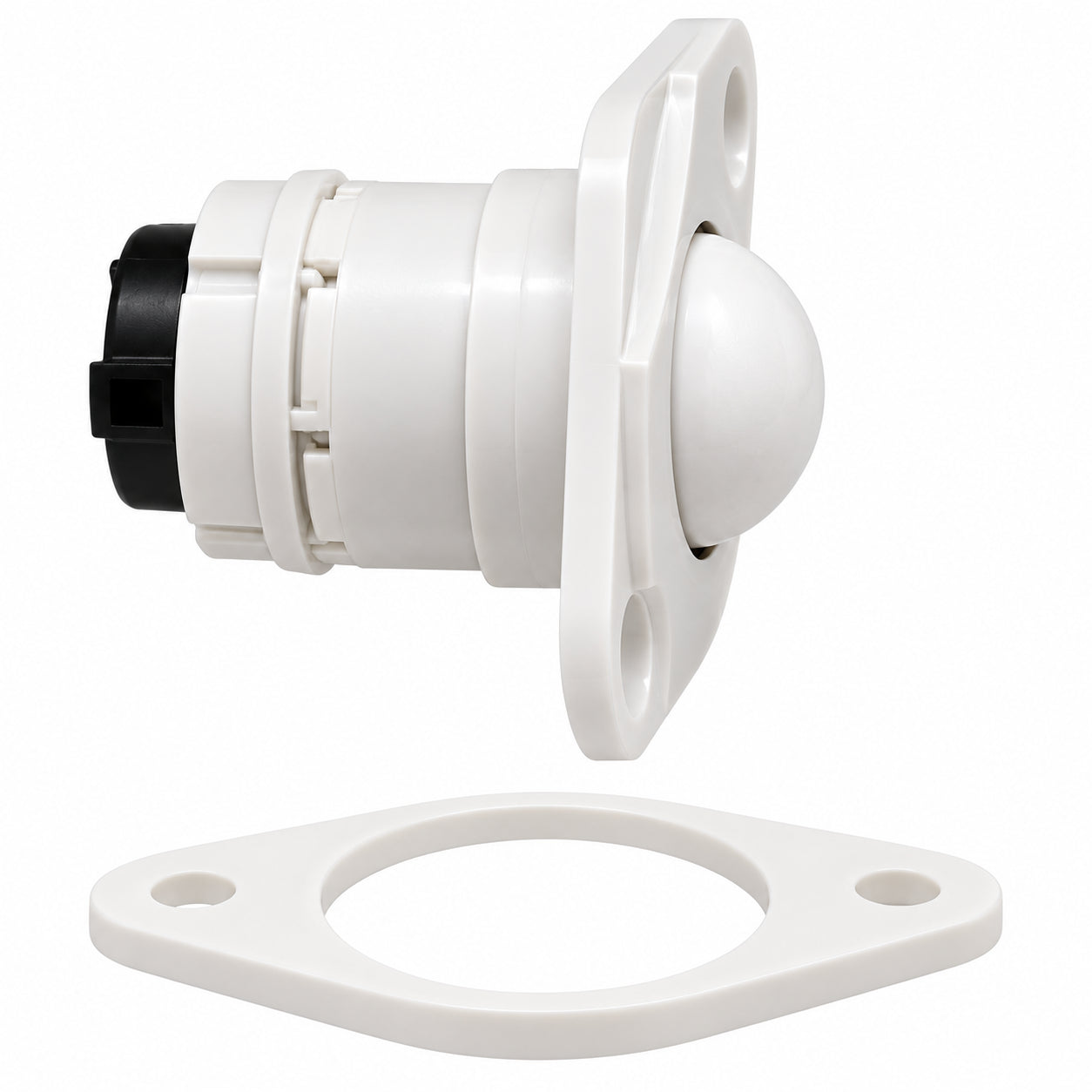

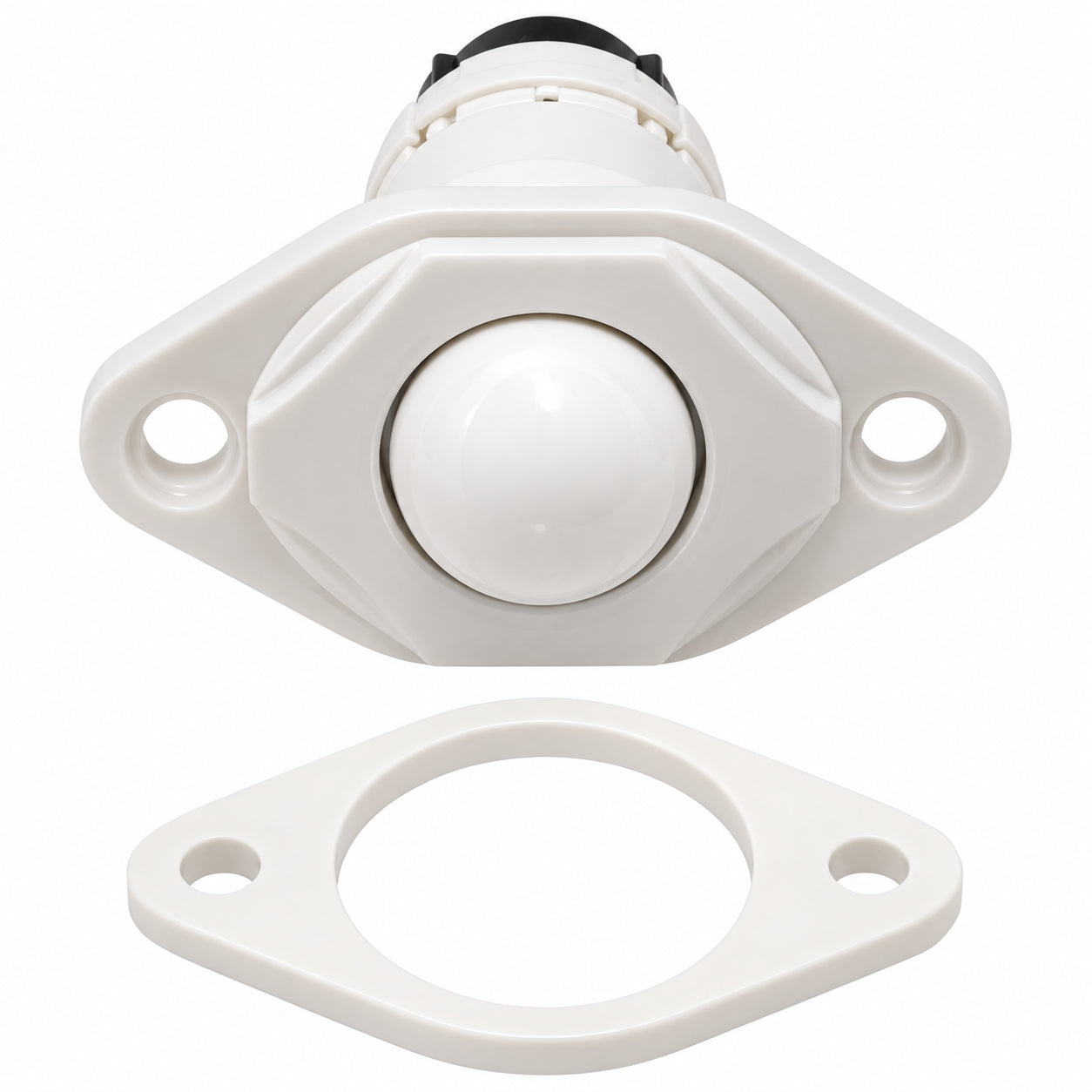

Honeywell Ademco 956RPT-WH White Roller Plunger w/ Terminals

The Honeywell Ademco 956RPT-WH is a white recessed mini roller plunger contact designed for intrusion detection on internal doors, sliding doors, pocket doors, windows, and similar applications where a concealed contact is preferred. Its compact recessed design provides a cleaner installation while the beveled roller plunger allows full 180-degree activation, helping accommodate different door and frame configurations. The contact incorporates Honeywell's exclusive staggered T terminals, which provide larger screw terminals for easier wiring and eliminate the need for field splicing, soldering, or taping. The switch uses a Form A, SPST reed configuration with a 100 mA at 28 VDC contact rating. Its shorter body is designed for easier recess fitting, while the 0.74-inch diameter and approximately 1.47-inch depth support compact concealed installations. The 956RPT-WH is white and is listed to UL634 and CAN/ULC-C634.
