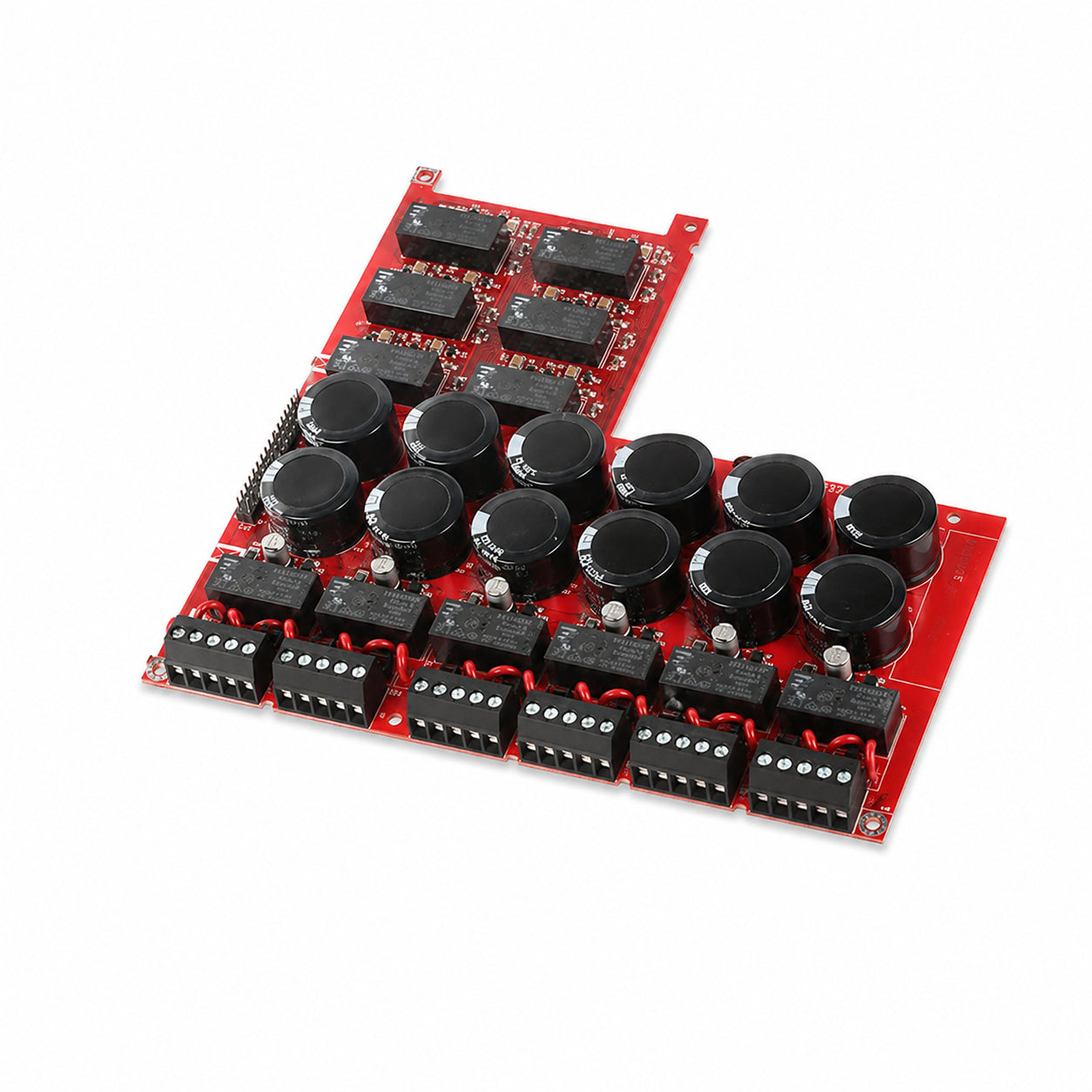

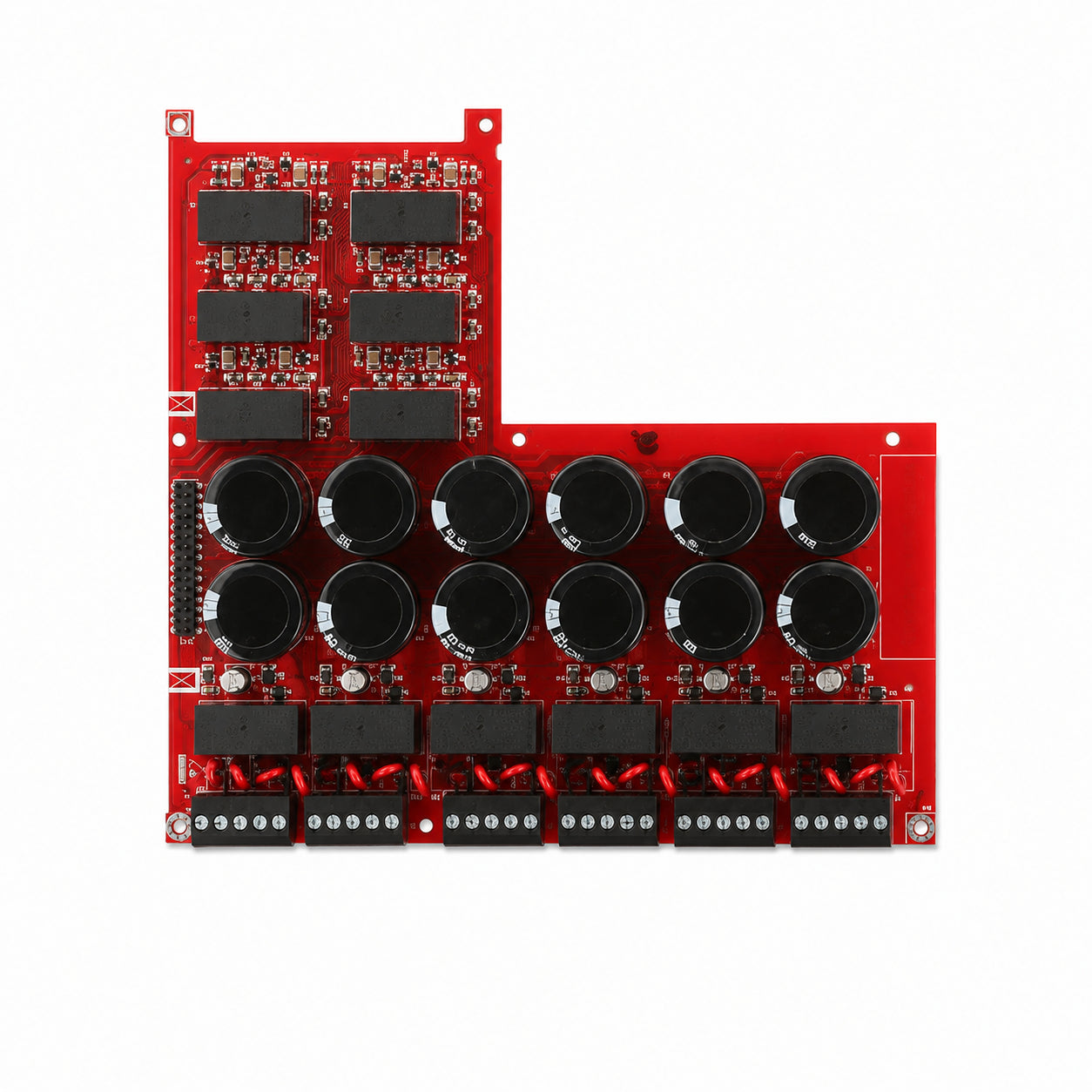

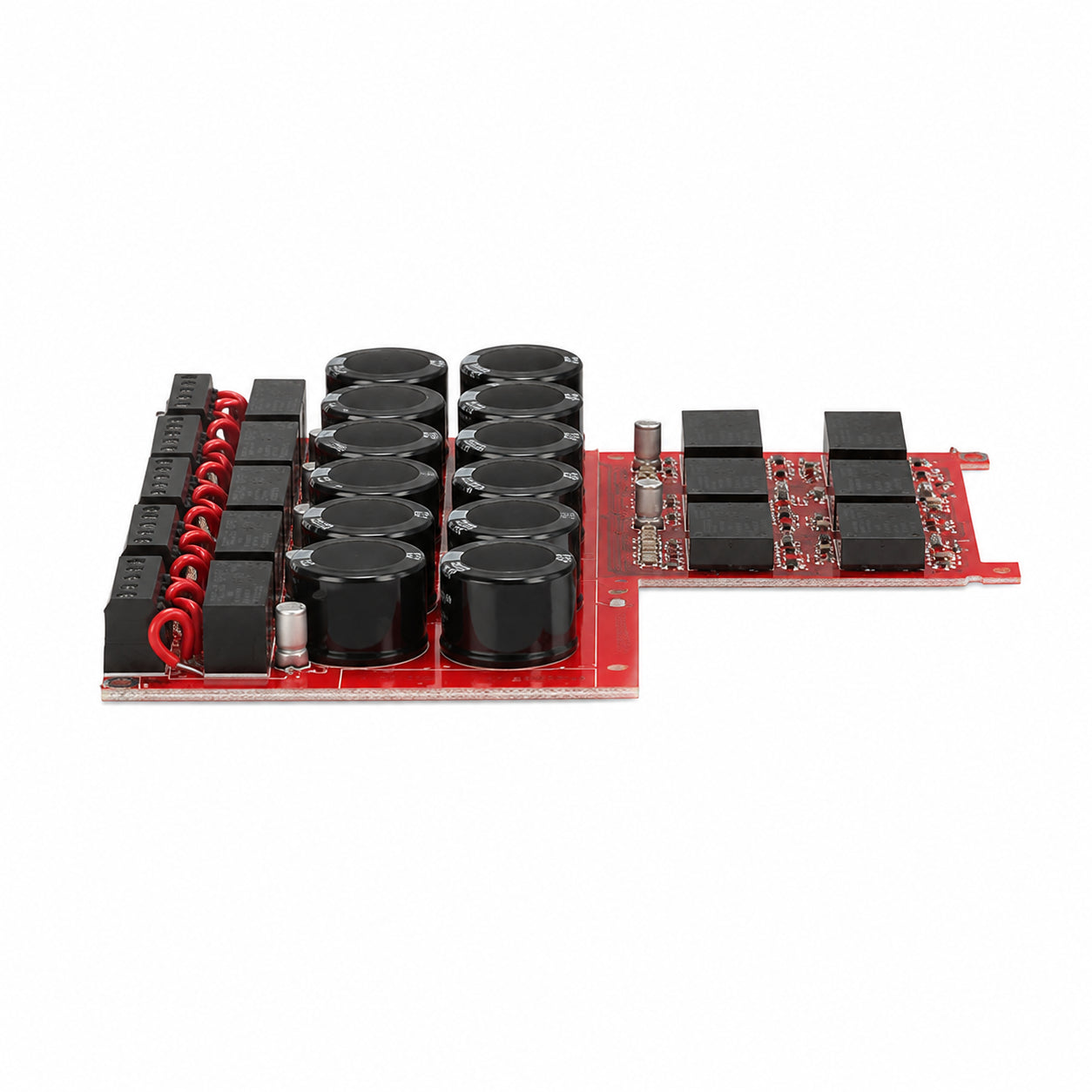

Fire-Lite ECC-CE6 Speaker Circuit/Zone Expander Module

The Fire-Lite ECC-CE6 is a circuit expander module designed for the ECC-50/100 Emergency Command Center. It expands the system's audio distribution capability by providing connections for up to six speaker circuits, including three primary and three secondary circuits when the optional amplifier is installed. The module supports Style Z Class A and Style Y Class B speaker circuit wiring and is installed directly onto the ECC-50/100 main control board. Speaker circuits can be configured through the system's web-based programming utility. Removable terminal blocks simplify servicing and module replacement, while its modular design provides flexible system expansion for emergency voice evacuation and mass notification applications.
