Fire-Lite BG-12LOB Manual Pull Station

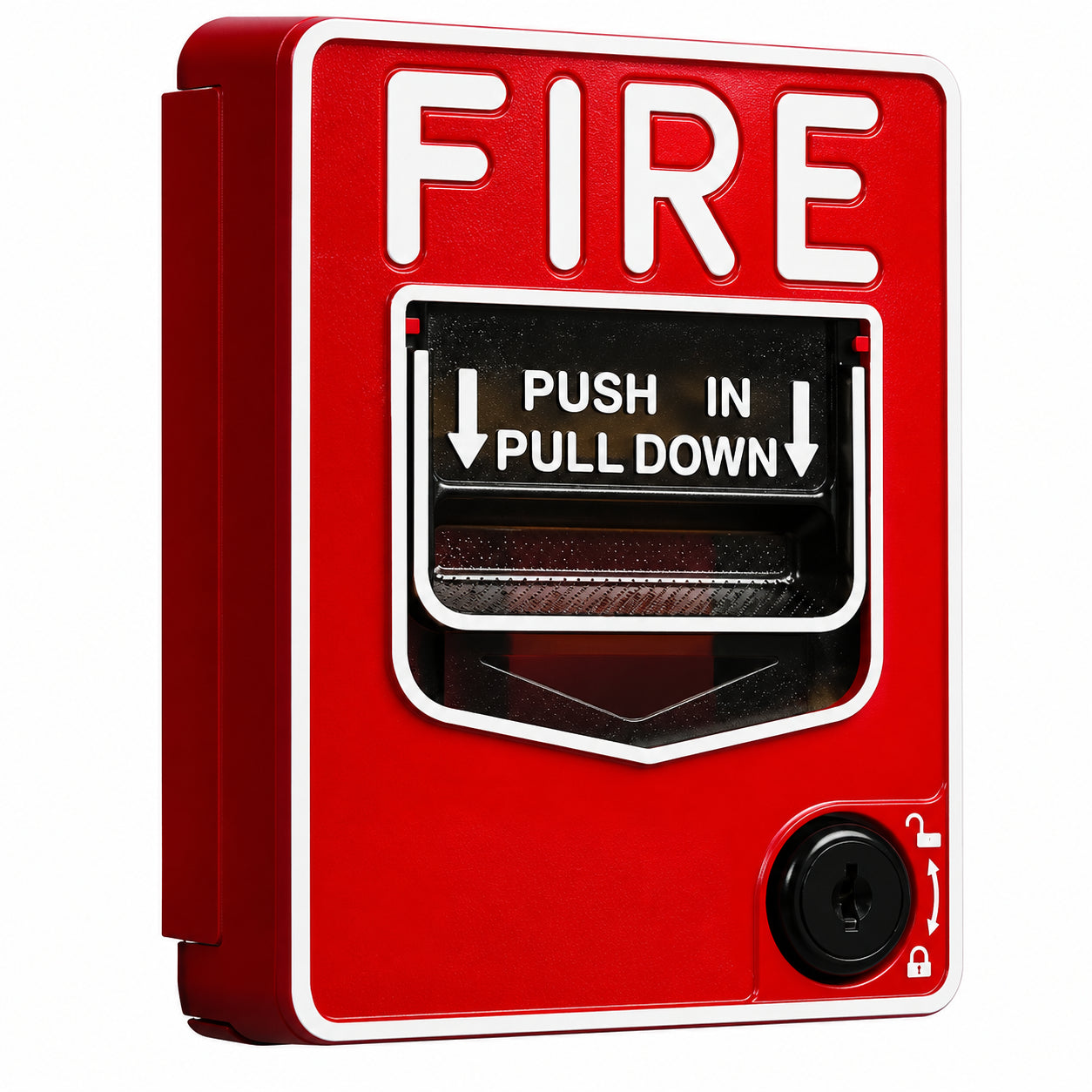

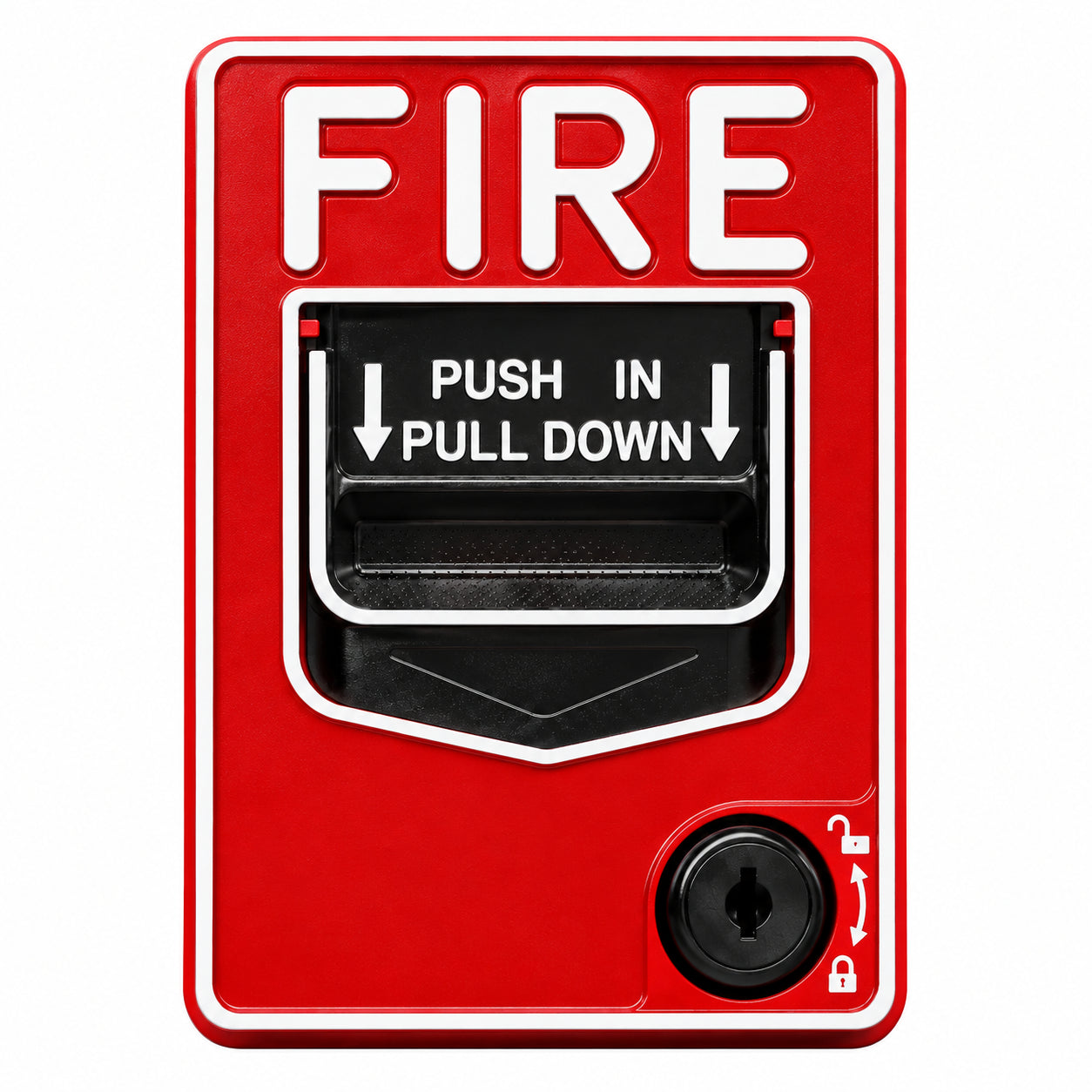

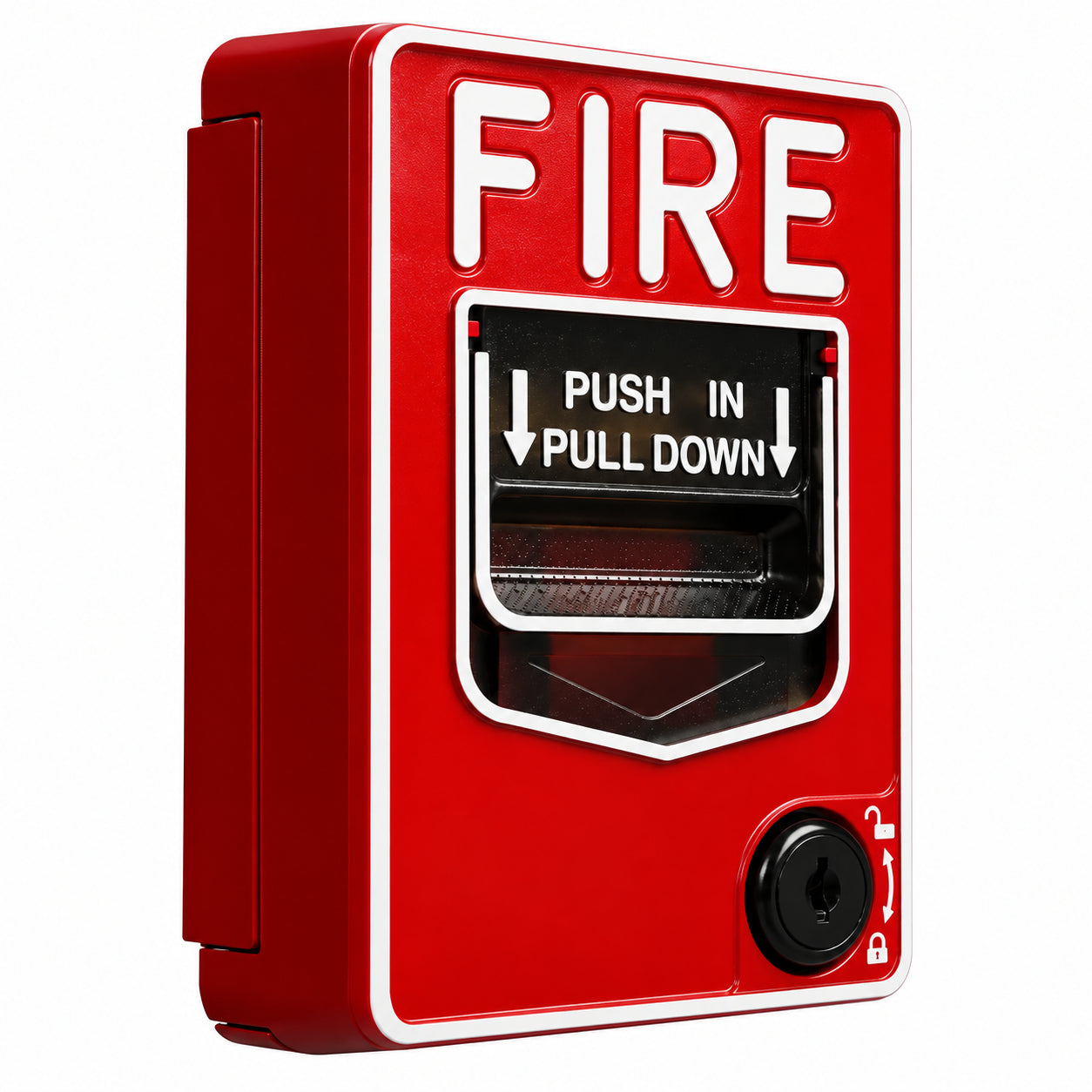

The Fire-Lite BG-12LOB is a non-coded, dual-action manual fire alarm pull station designed to provide a conventional fire alarm control panel with a reliable manual alarm initiating signal. The station requires the user to push in and pull down the handle to activate the alarm, helping reduce accidental activation. Once operated, the handle latches in the down position and displays the word "ACTIVATED" for clear visual indication. The BG-12LOB includes a key-lock reset mechanism, an approved outdoor-use gasket, and an outdoor-rated SB-I/O surface-mount backbox, making it suitable for listed outdoor applications. Its SPST normally open switch uses gold-plated contacts and is rated at 0.25 A at 30 VAC or VDC. The unit features molded operating instructions, Braille text, and molded terminal numbers. It is designed for durable fire alarm installations and meets ADA requirements for a maximum 5 lb activation force.
