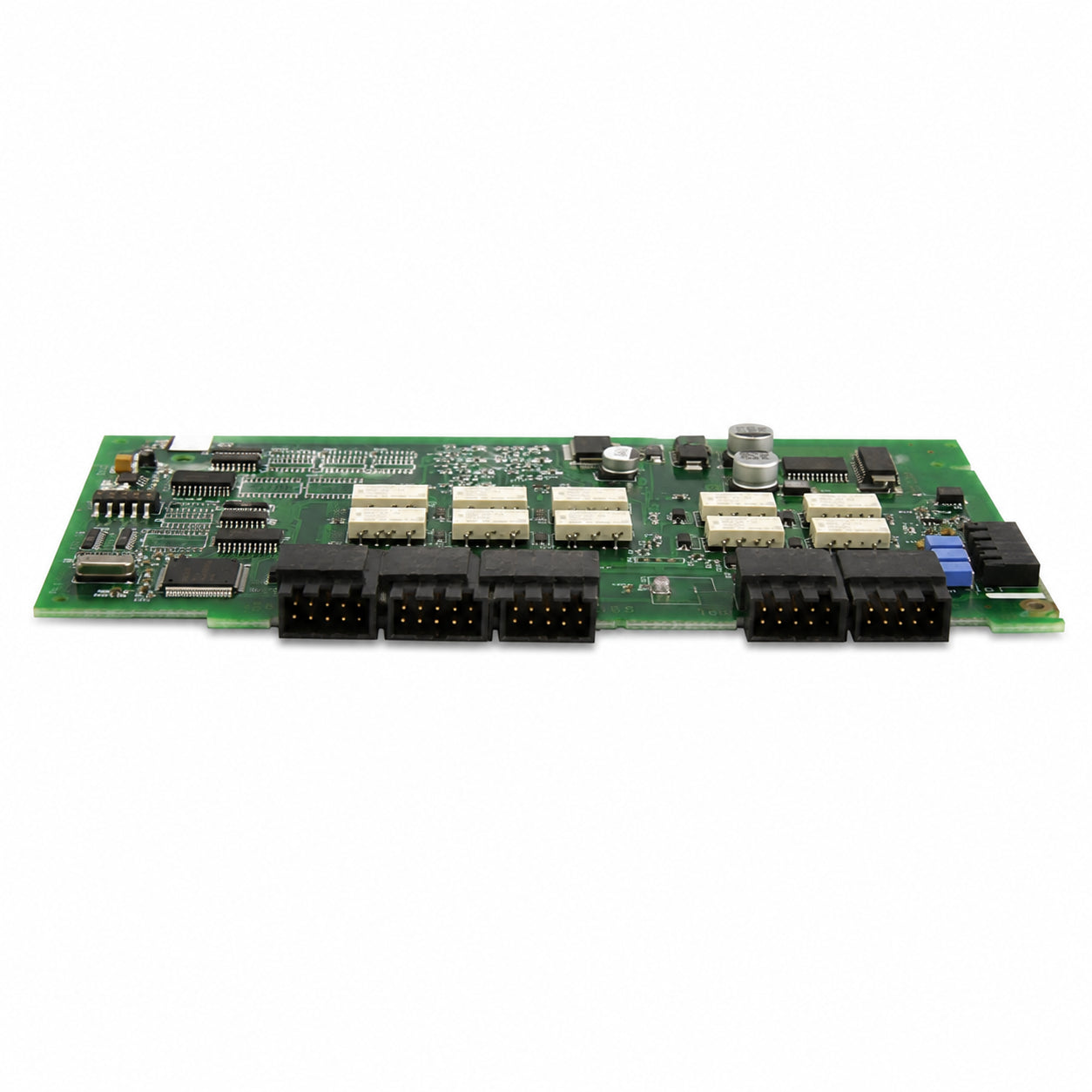

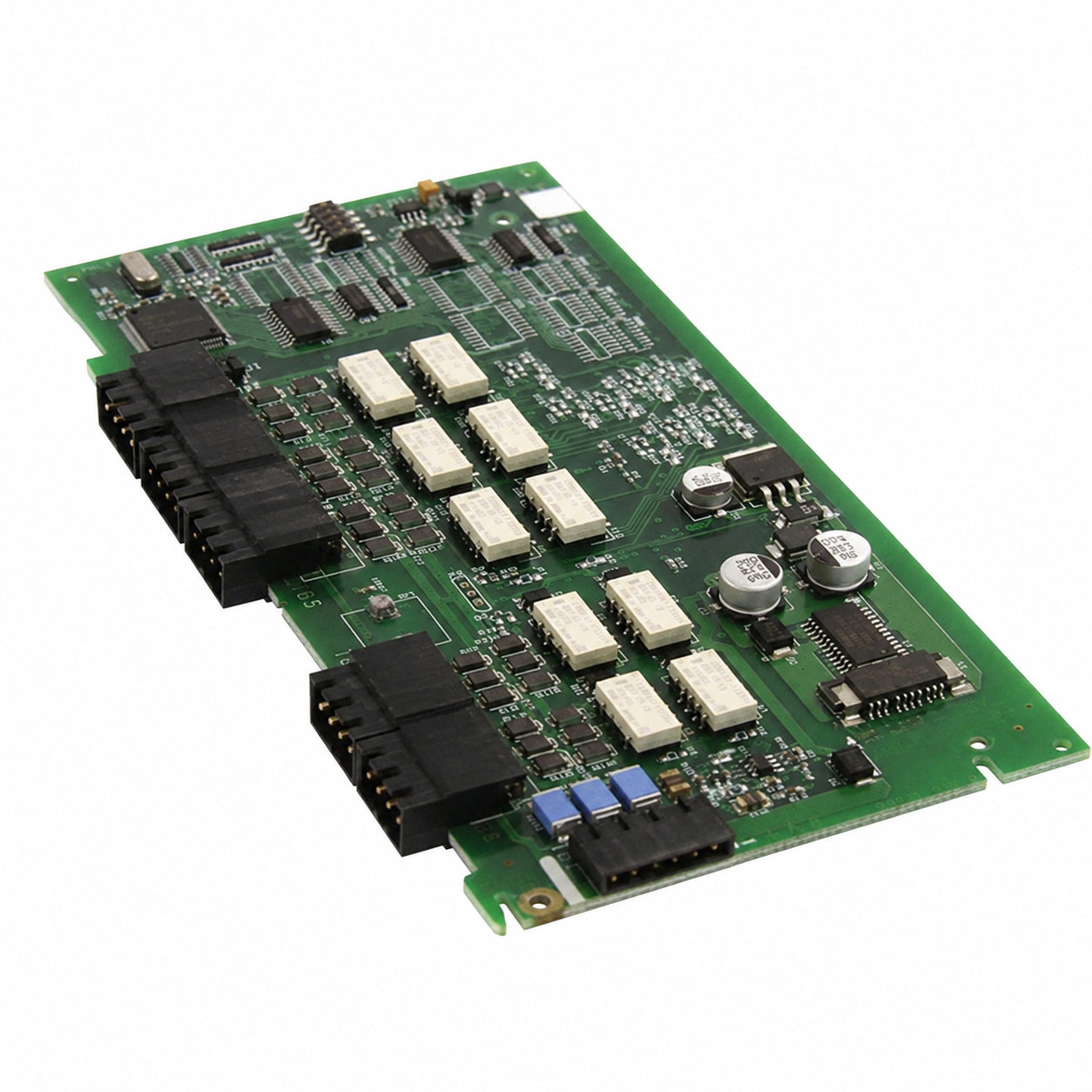

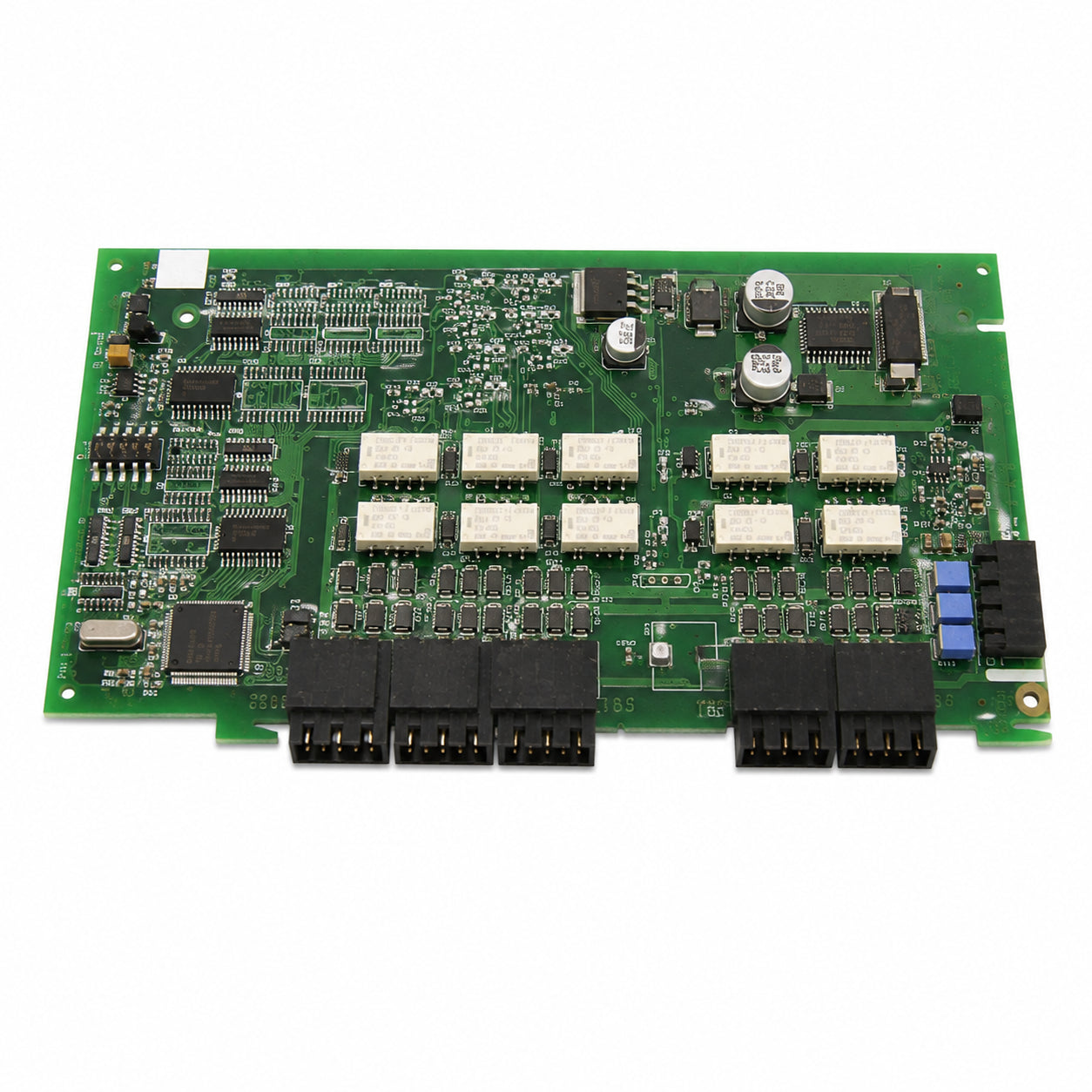

Fire-Lite ANN-RLY Relay Module

The Fire-Lite ANN-RLY is a relay module designed for use with compatible Fire-Lite fire alarm control panels. It provides 10 programmable Form-C relays for integrating fire alarm events with auxiliary building systems and functions. The module communicates with the fire alarm control panel through the ANN-BUS two-wire serial interface and uses an additional 24 VDC power connection. Relays can be programmed for alarm, trouble, supervisory, AC loss, waterflow delay, input zones, and silenceable alarm functions. The ANN-RLY supports up to eight ANN-BUS devices per compatible control panel and requires minimal programming. It can be installed within the FACP chassis or enclosure using the appropriate mounting provisions.
