Edwards EST SIGA-DMP Detector Mounting Plate 260242P

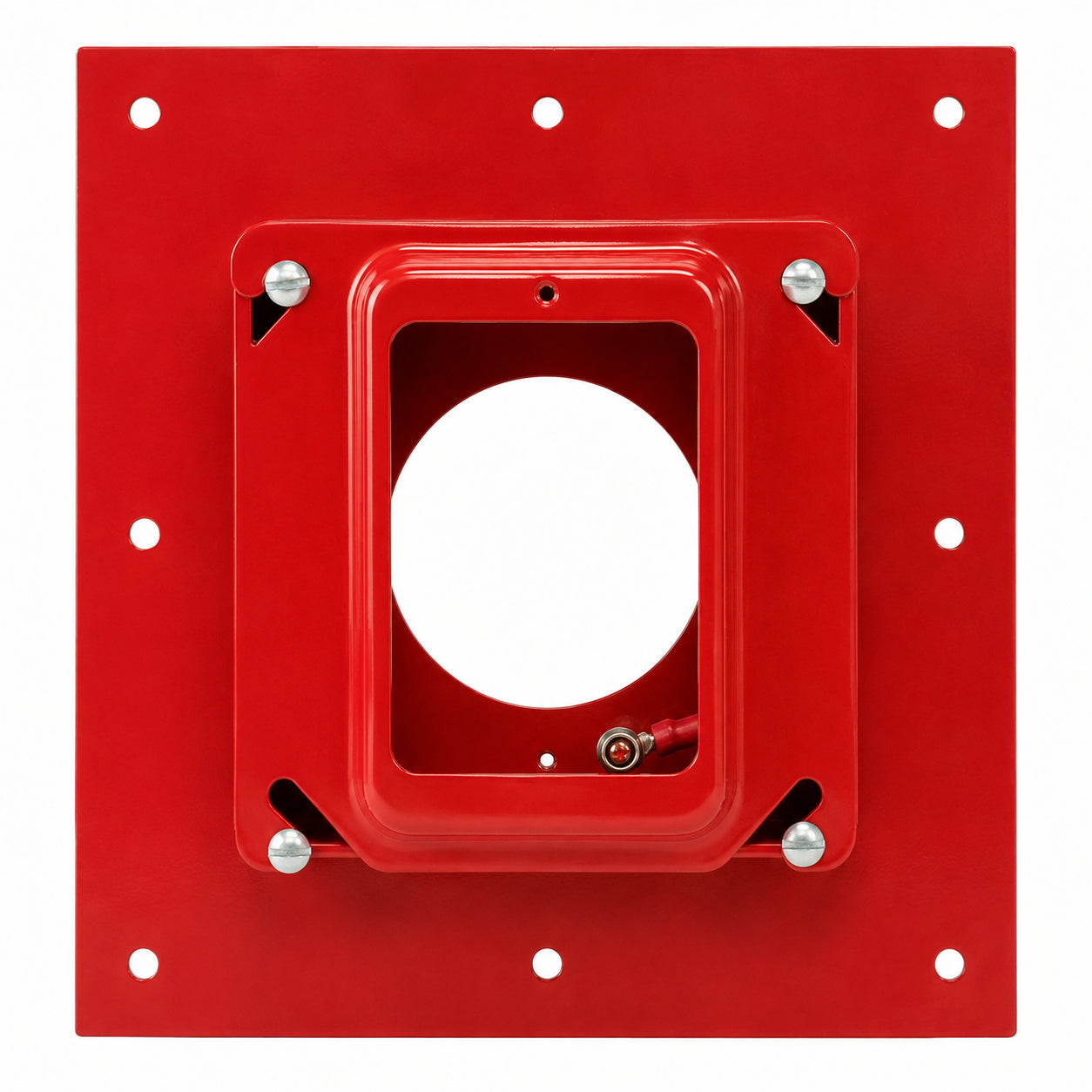

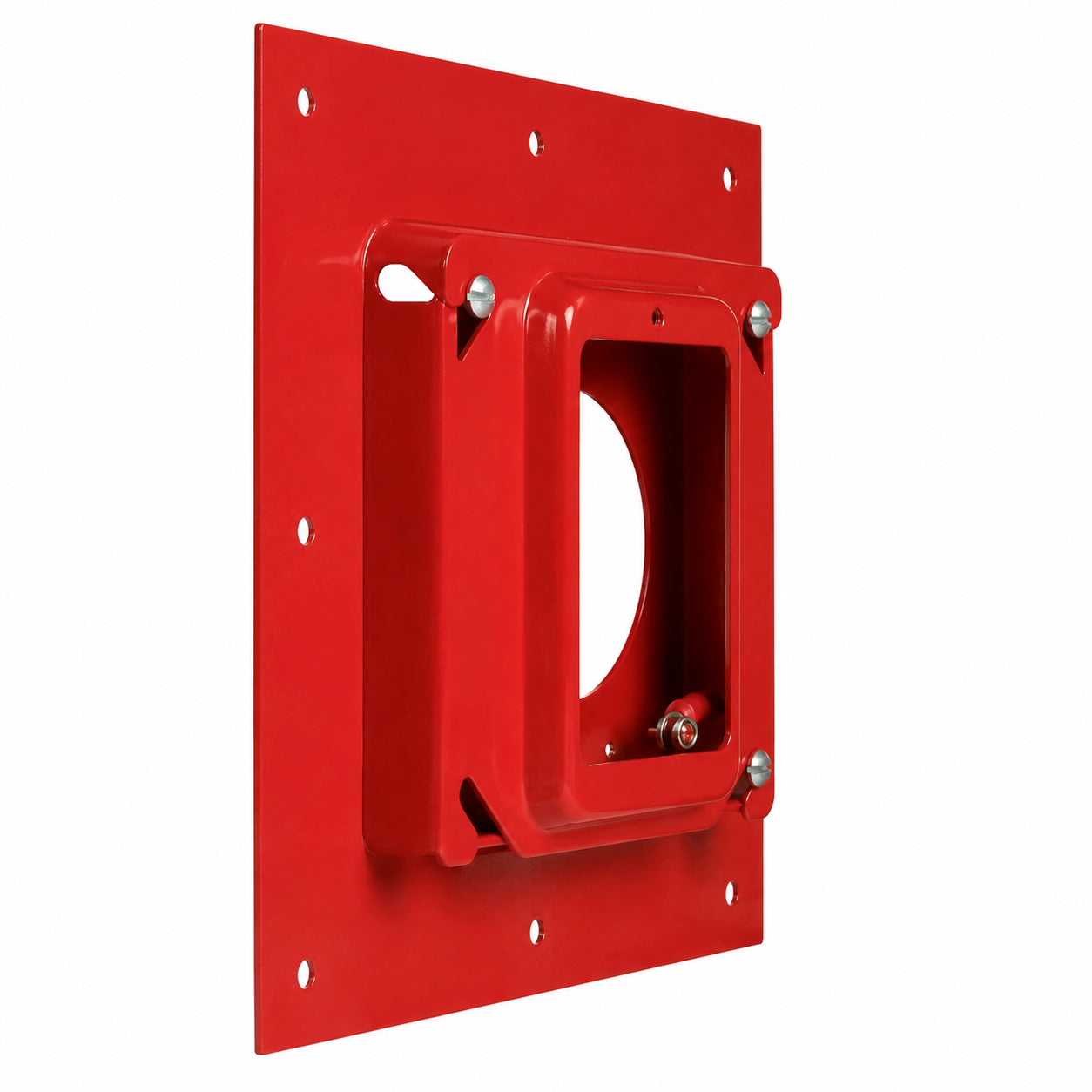

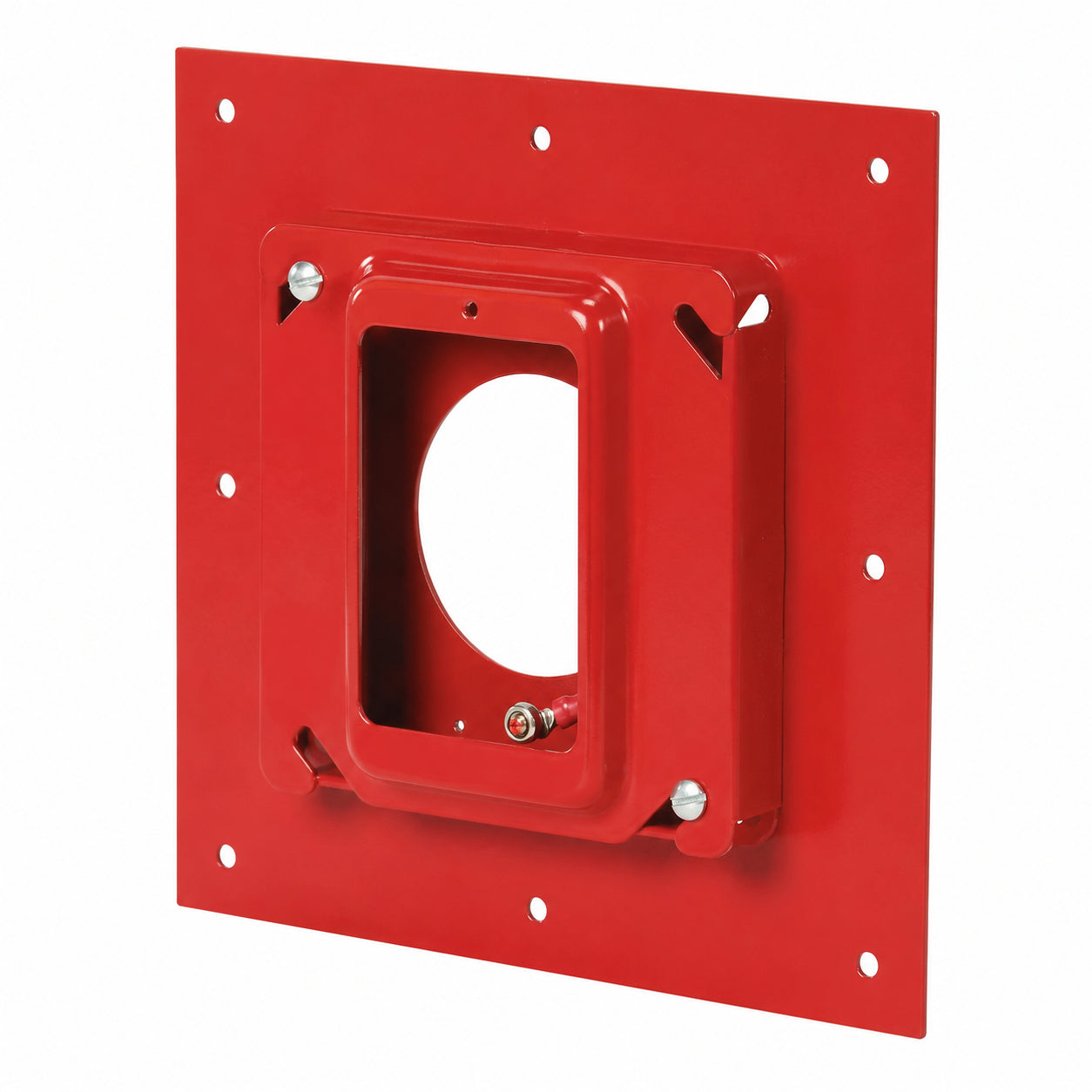

The Edwards EST SIGA-DMP Detector Mounting Plate, part number 260242P, is a 7 inch square steel mounting plate designed for installing Signature Series intelligent smoke detectors in raised floor, plenum, and low velocity HVAC duct applications. The plate includes a 4 inch square electrical junction box for wiring connections and supports compatible detector bases such as the SIGA-SB, SIGA-RB, and SIGA-IB. It is designed for use with compatible Signature Series detectors and can be installed on ducts up to 36 inches wide and 36 inches high. The assembly features high-gloss red steel construction and accommodates duct wall thicknesses up to 3/4 inch.
