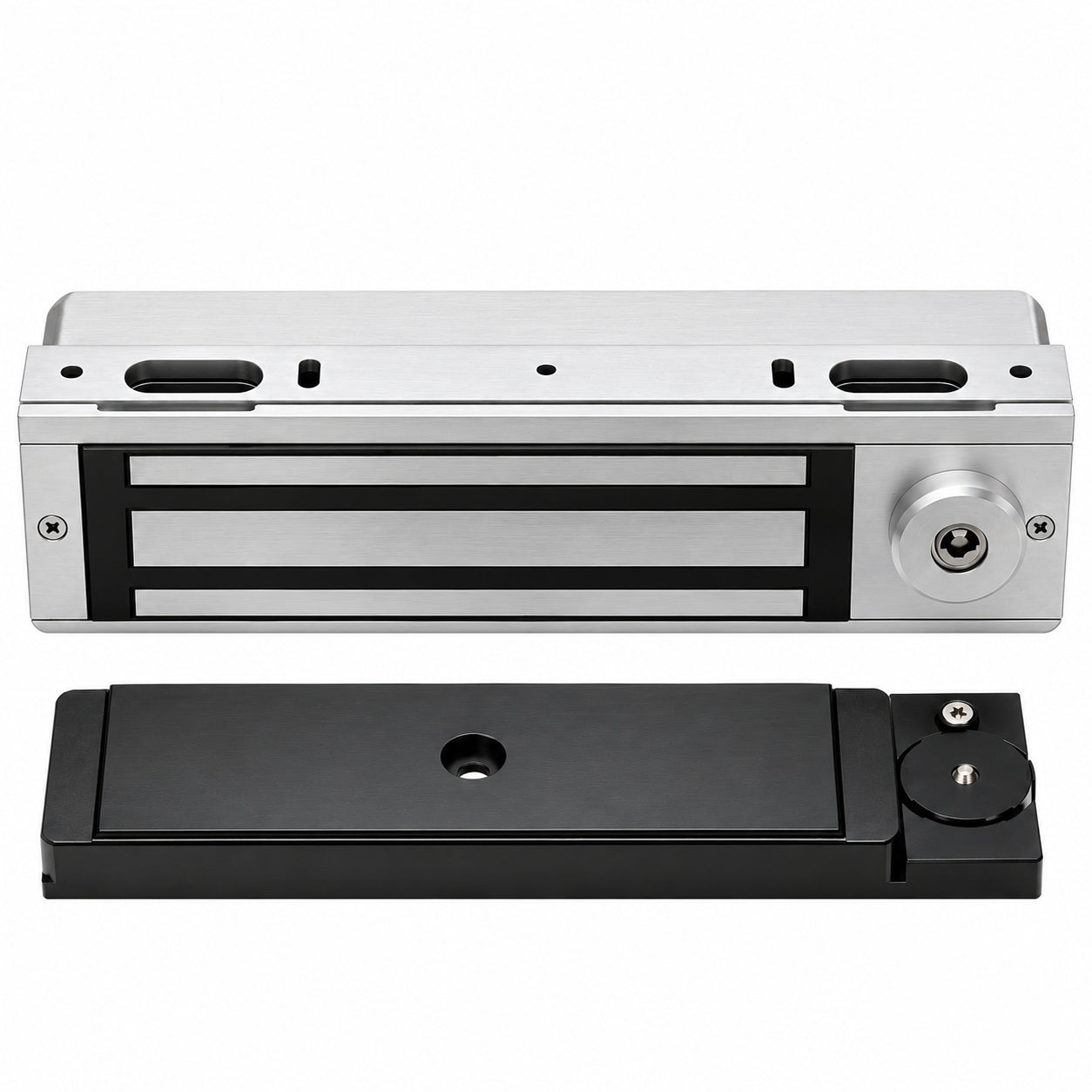

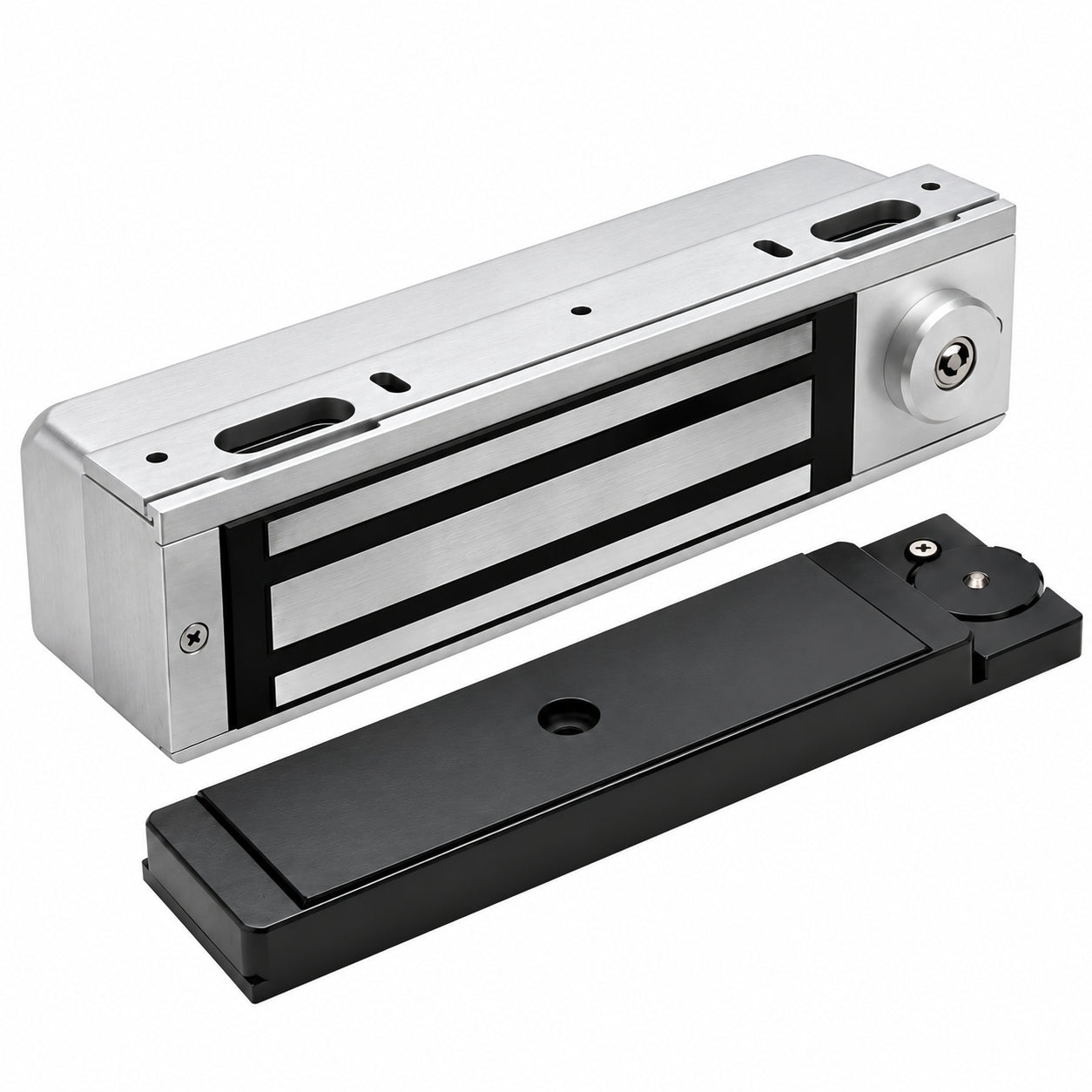

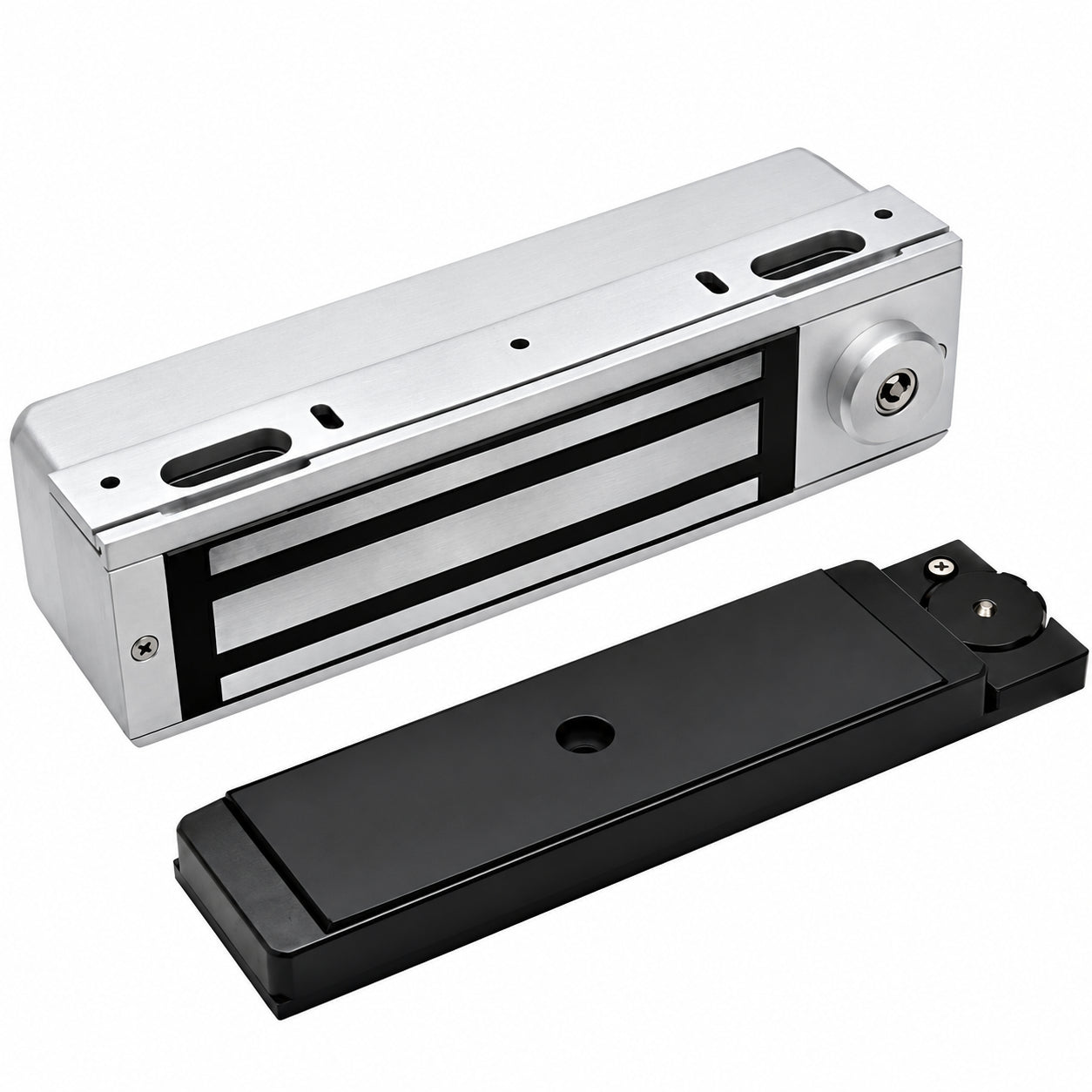

DynaLock 3101C GEN II Electromagnetic Lock 1500 lb 12V/24V Single Door

The DynaLock 3101C GEN II is a high-security 1,500 lb delayed egress electromagnetic lock designed for single outswing doors and compatible access control applications. The surface-mounted, non-handed design provides flexible installation while supporting 12 or 24 VAC/VDC through automatic voltage sensing. The integrated electronics provide a selectable 15 or 30 second delayed unlocking function, helping support controlled egress requirements when properly installed with the required fire alarm and access control interfaces. A concealed opto-electronic sensor monitors door movement and is designed to resist nuisance activation caused by minor door movement, warpage, wind, or sag. The lock measures approximately 11 inches long, 3 inches deep, and 2.75 inches high, and features a satin aluminum US28 finish. The unit includes the lock assembly, armature, armature housing, mounting hardware, template, door sign, and installation documentation.
