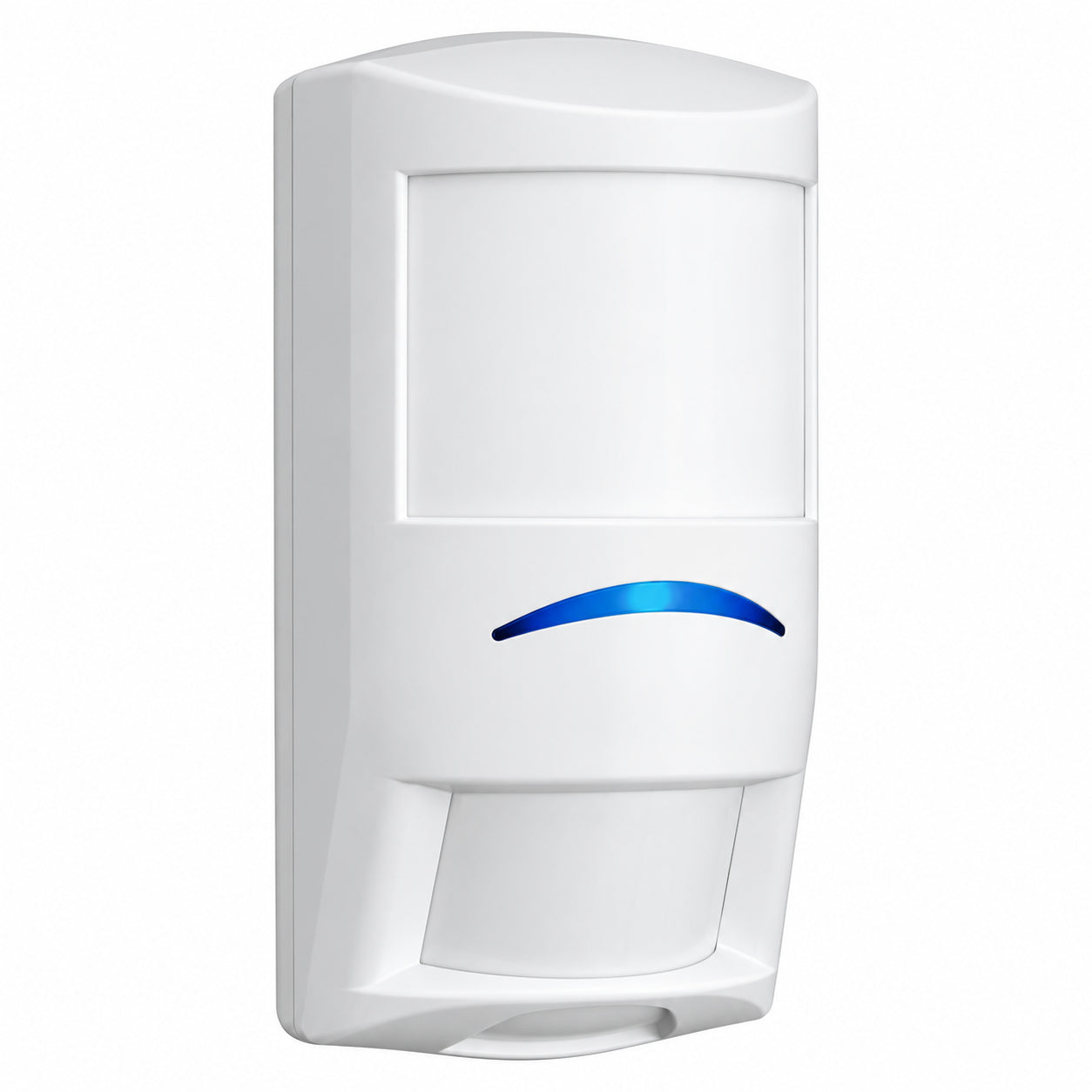

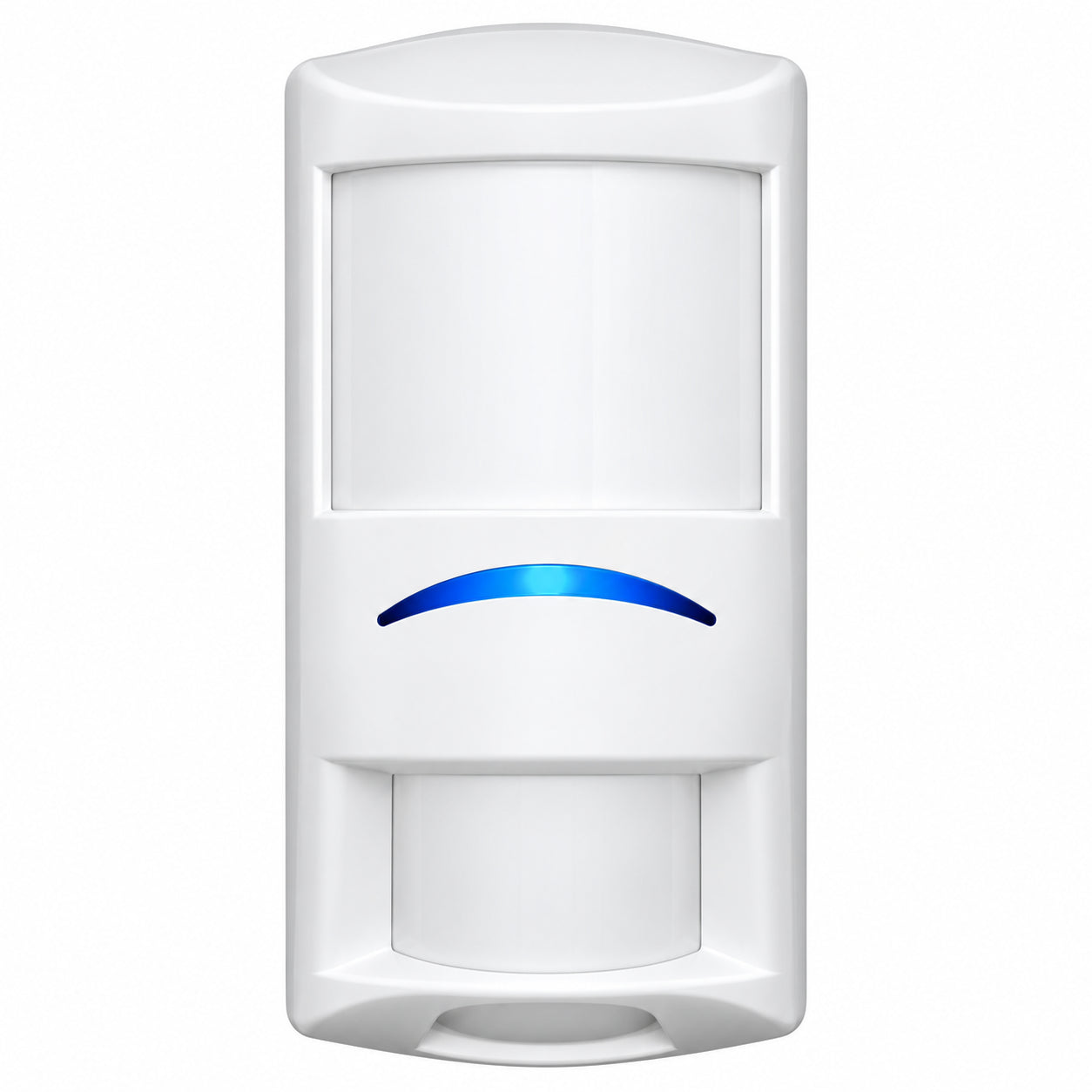

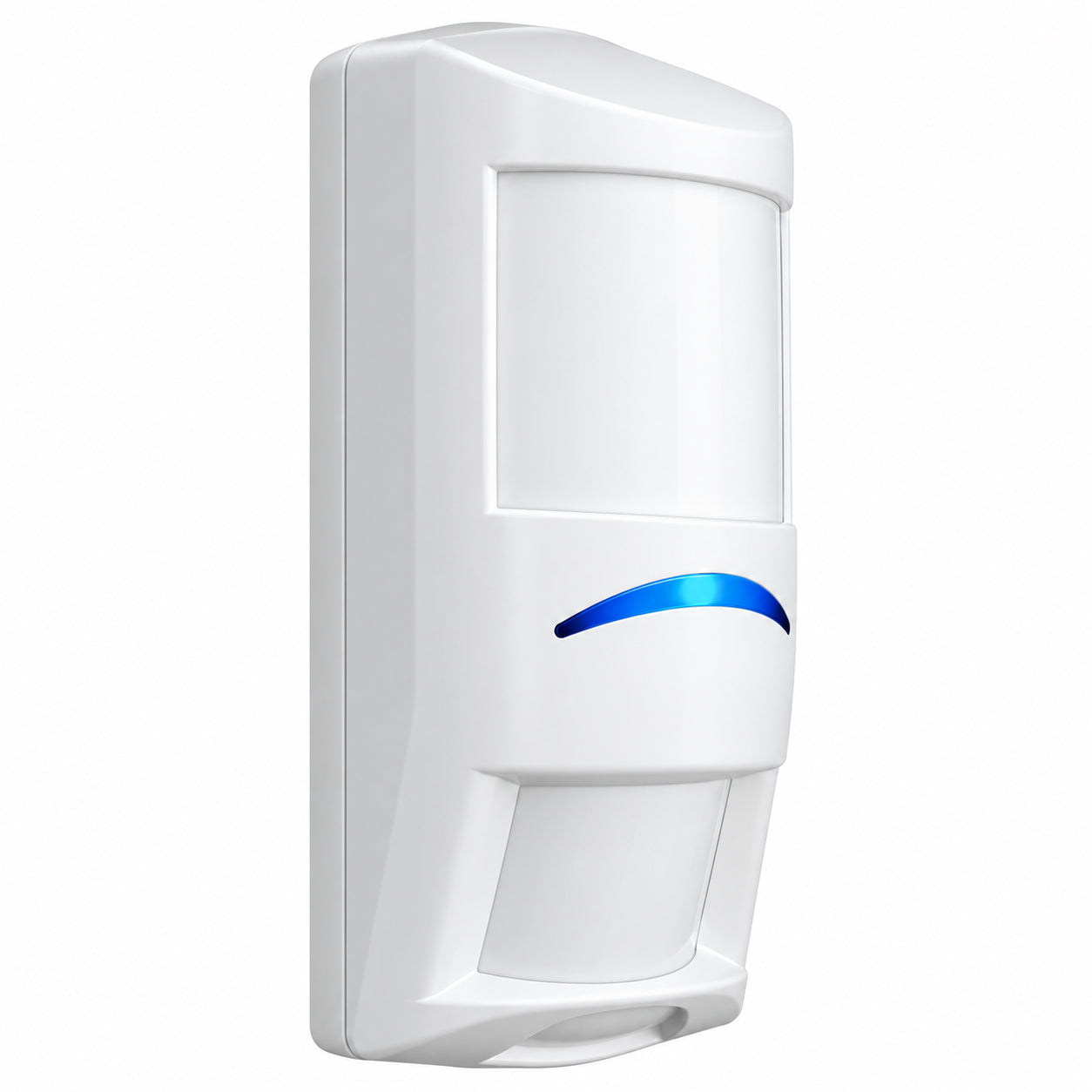

BOSCH ISC-PDL1-W18 Professional Series TriTech Motion Detector

The BOSCH ISC-PDL1-W18 Professional Series TriTech Motion Detector is an indoor intrusion detection sensor designed for commercial security applications. It combines passive infrared (PIR) and microwave sensing with Bosch Sensor Data Fusion technology to provide reliable motion detection while helping reduce false alarms. The detector provides long-range coverage of up to 18 x 25 meters (60 x 80 feet), with a selectable short-range pattern of 8 x 10 meters (25 x 33 feet). Tri-focus optics help eliminate coverage gaps, while range-adaptive radar supports consistent detection performance. The unit operates from 9 to 15 VDC and uses a high-impact ABS enclosure. It includes separate LED indicators for TriTech alarms, microwave detection, and PIR detection, and supports wall, corner, or optional ceiling mounting. The detector is EN 50131-2-4 Grade 2 compliant.
