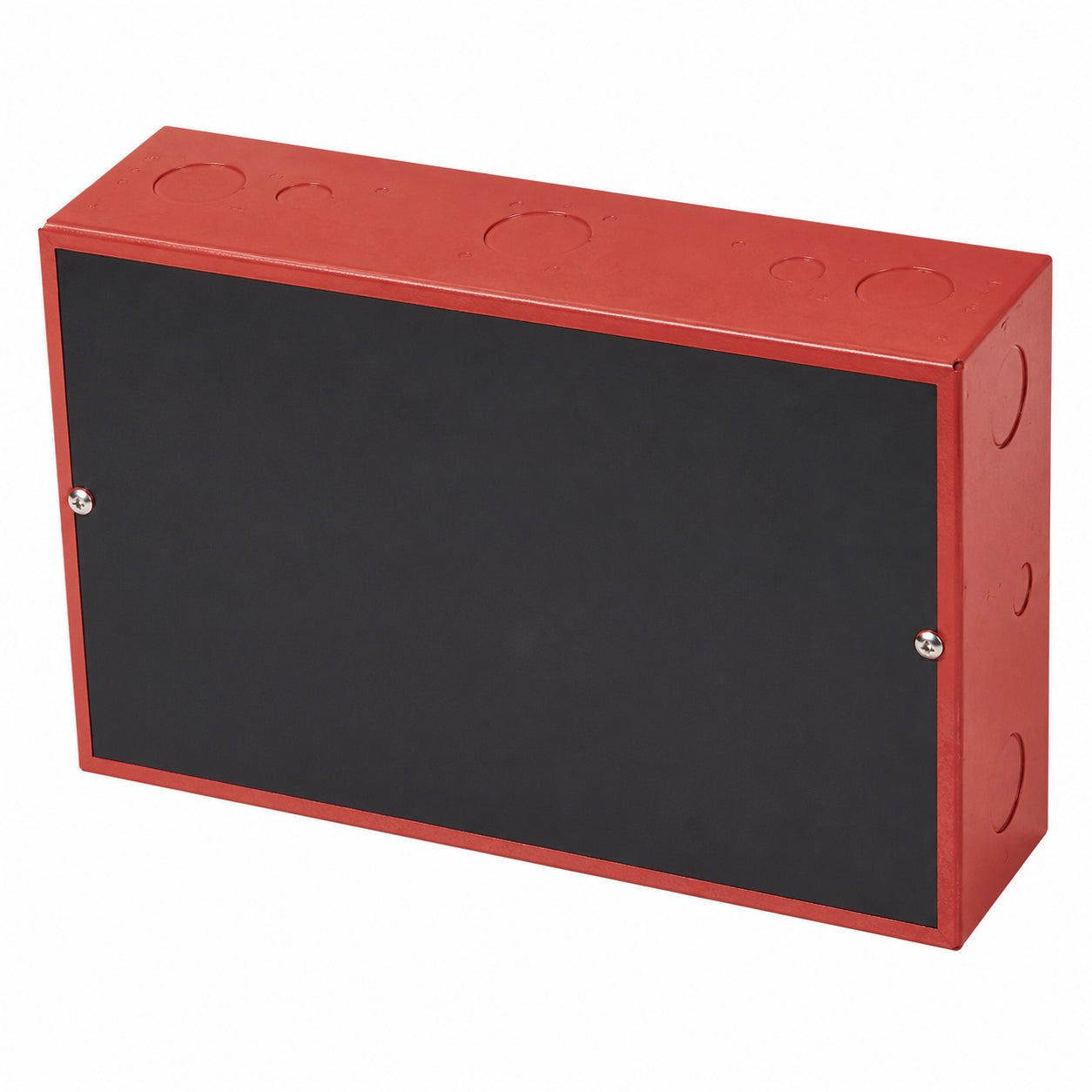

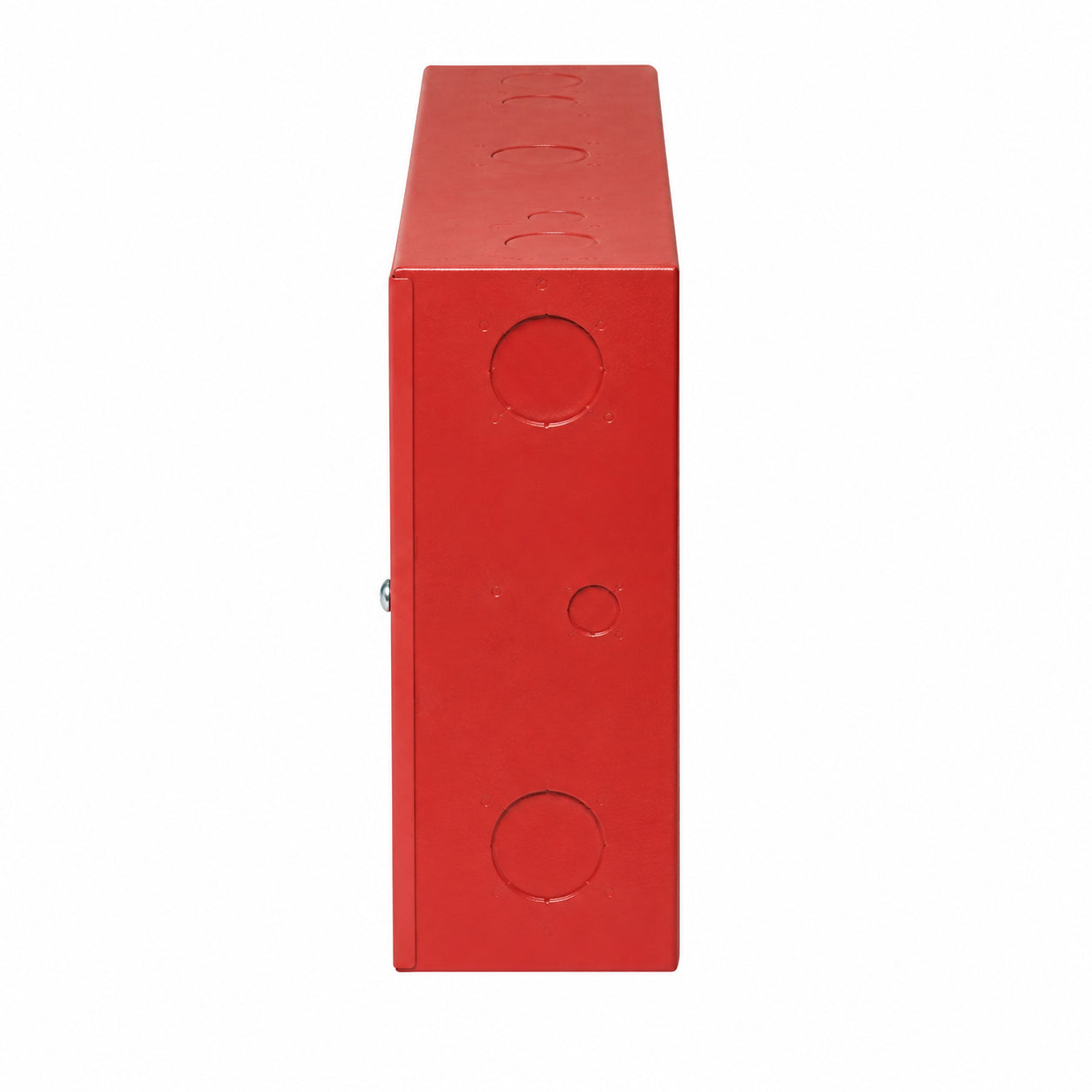

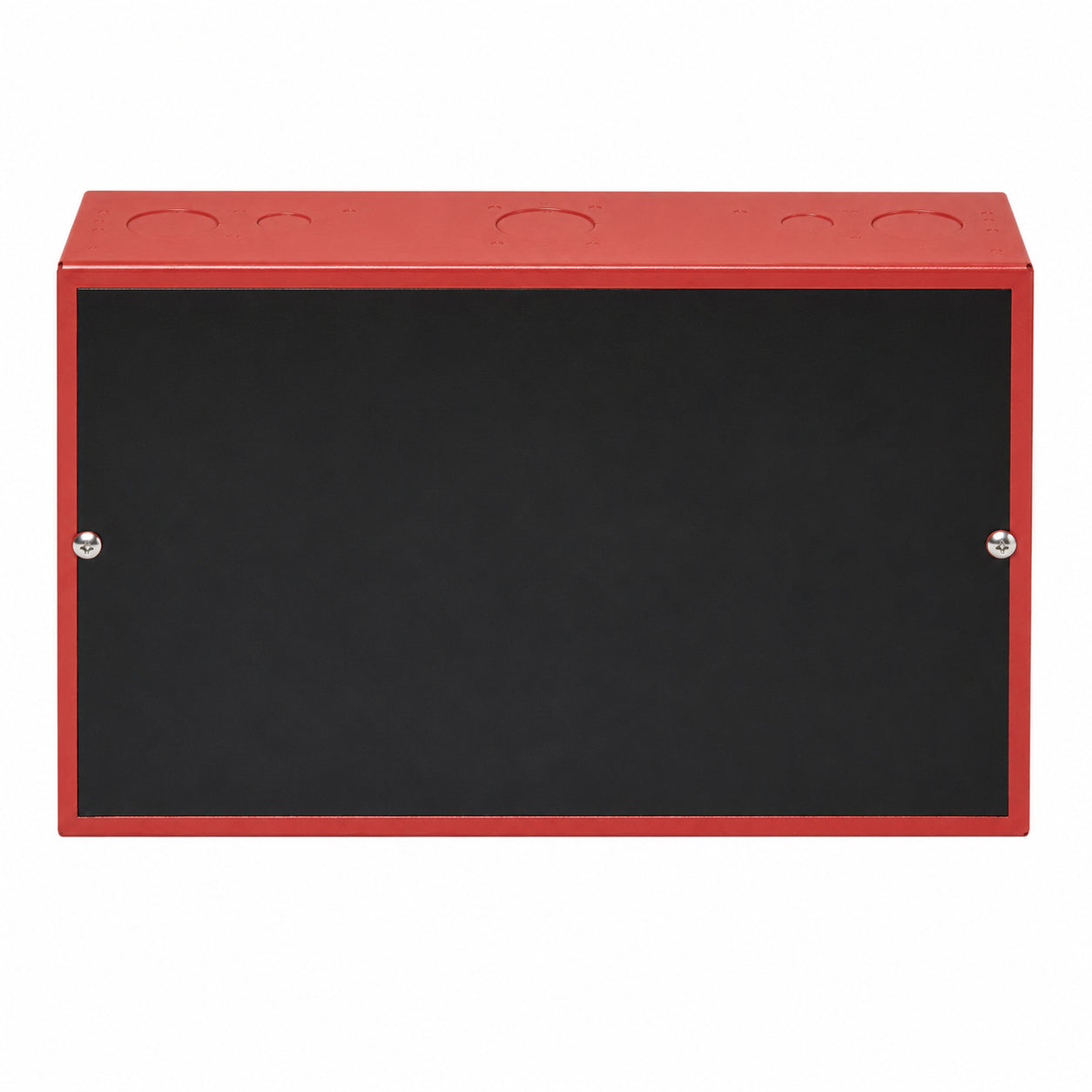

Bosch D9068 Fire Digital Alarm Communicator Transmitter

The Bosch D9068 Fire Digital Alarm Communicator Transmitter (DACT) is a fire alarm communication device designed for use with compatible fire alarm control panels. It provides reliable transmission of fire and system status information to central or remote monitoring stations through dual telephone line interfaces. The D9068 supports five user-programmable Class B, Style B input points that can monitor conditions such as fire alarm, waterflow, supervisory events, system faults, AC failure, and low battery. It supports multiple reporting formats, including Modem IIIa2, Contact ID, SIA110, SIA300, and 4/2. A 100-event history buffer records dated and timed events, while onboard supervision, trouble indication, lightning suppression, and a Form C trouble relay enhance system reliability. The unit operates on 12 VDC or 24 VDC power.
