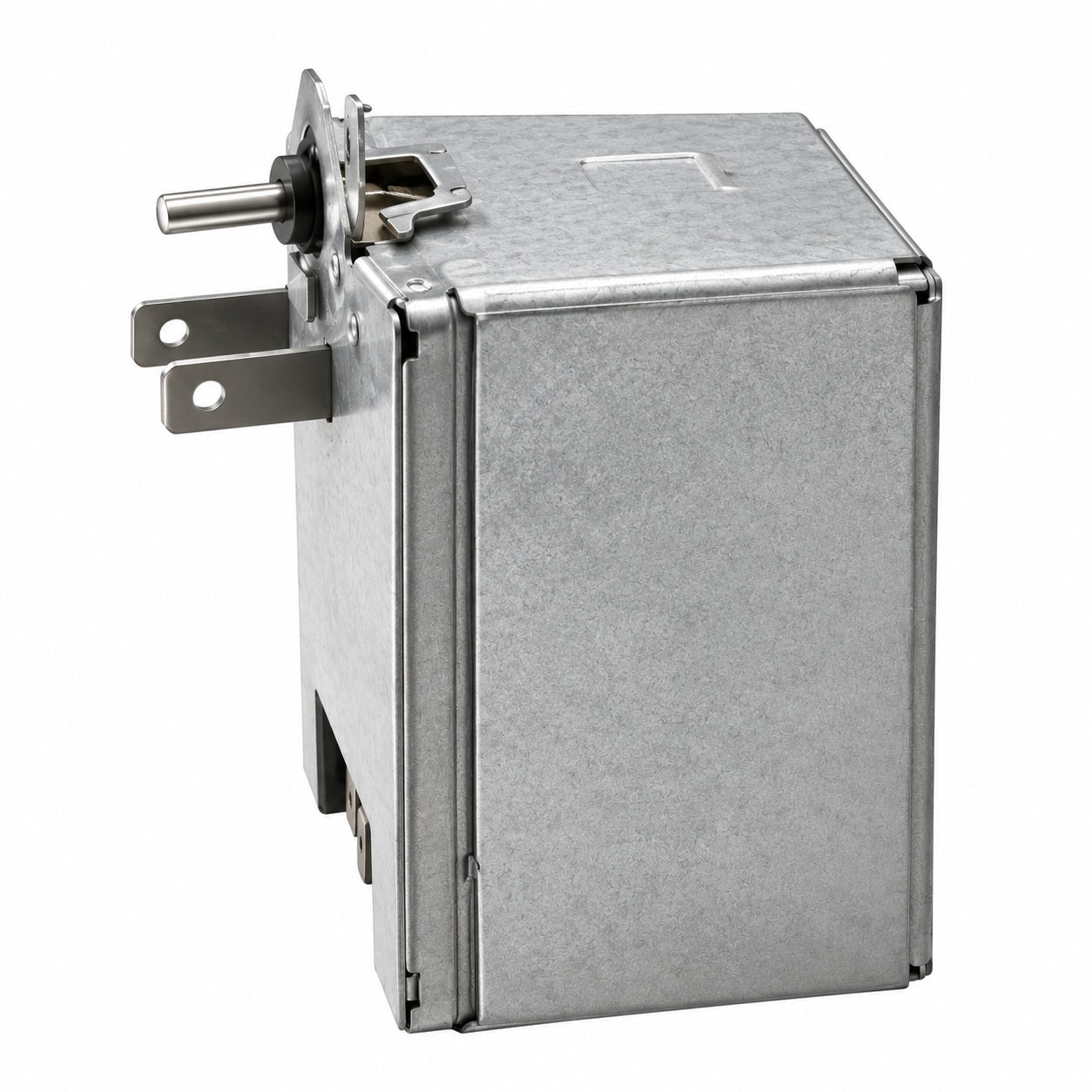

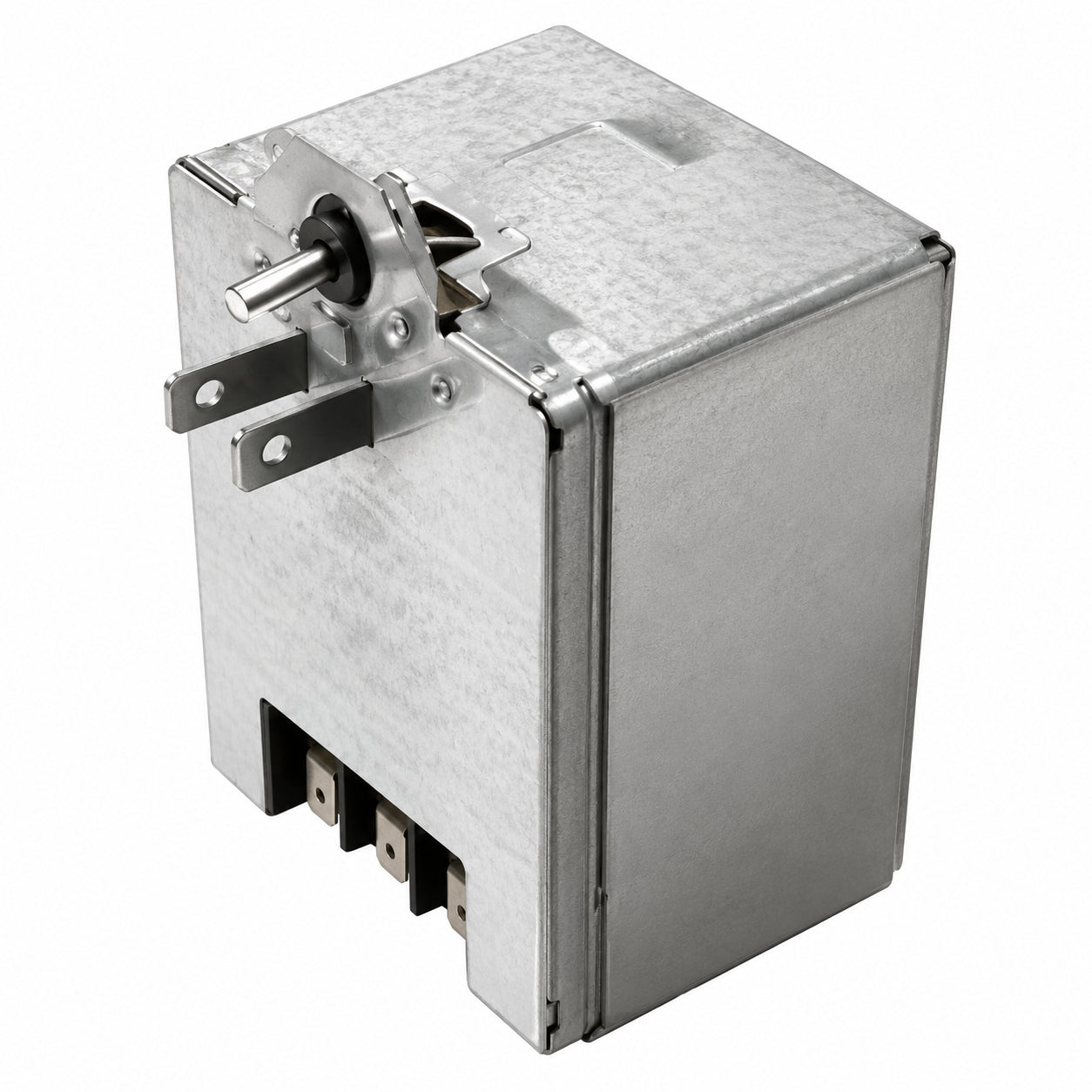

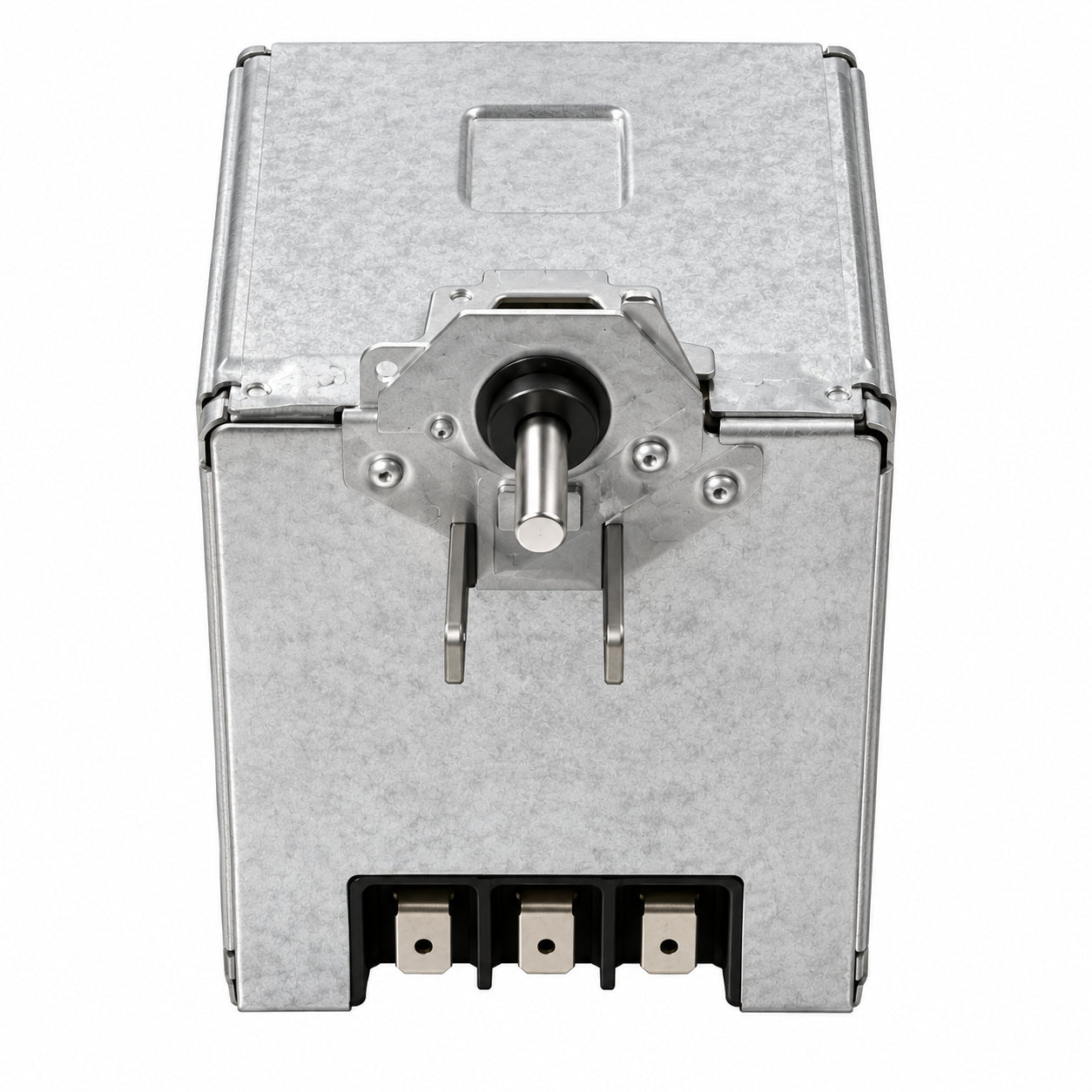

Altronix TP1640 Plug-in Transformer - 16VAC/40VA

The Altronix TP1640 Plug-In Transformer is a compact Class 2 power transformer designed to provide reliable low-voltage AC power for access control, security, CCTV, fire alarm, and other electronic systems. It accepts 115VAC at 50/60Hz and delivers 16.5VAC at 40VA with a maximum output current of 2.4A. The plug-in design provides convenient installation from a standard AC receptacle, while screw terminals simplify connection to the powered equipment. Its compact housing is well suited for installations where space is limited. The TP1640 operates from 32°F to 120°F and is UL listed for appropriate applications. Altronix lists the product dimensions at approximately 3.25 inches high, 2.6 inches wide, and 3 inches deep, with a product weight of approximately 1.25 lbs. The transformer is also RoHS compliant and produces approximately 20 BTU per hour.
